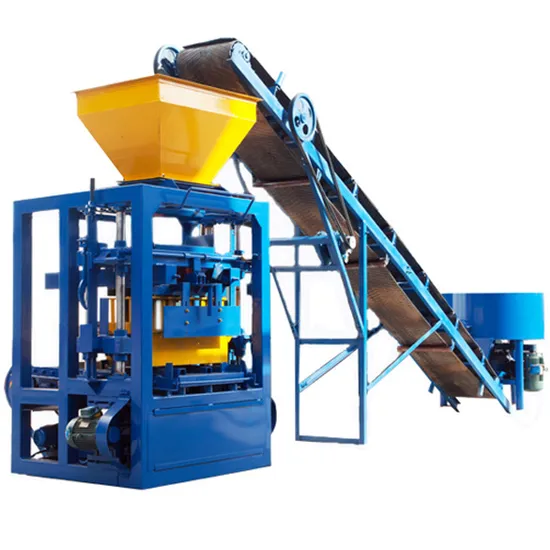

Qtj4-25 Cement Block Making Machine Factor Sales

Product Description

1.Why choose us?TOBEMAC----CHINA Leading Construction Machinery Manufacturer We are manufacturer of Concrete Mixers Since 1991. We are certified by SGS;BV;SONCAP;PVOC;CE; ISO 9001:2015 We have a Professional Construction Machinery workshop which covers an area of 10000 sqm and its daily output for CONCRETE MIXER is 50 sets , so we can assure you the punctual delivery. Our main products include all kinds of Diesel Concrete Mixer,Electric Concrete Mixer,Concrete Mixer Truck, Hoisting Machinery, Road Machinery,Compactor Machinery,Block Machinery , and etc. Our company is near the NINGBO port , you are very welcome to come to our company. 2.Products Specification:There series of Block Shaping Machine, are excellent in performance, high in efficiency,
and lower in energy consumption. Since putting into the market, good economic profits
and social benefits have been achieved. They are ideal equipment for high quality cement blocks. The product made by them can be piled up(3-5layers)immediately after shaping.

Main Technical Parameter
Model	QTJ4-25	Total Power	16.58 kW
Moulding Period	20-25 Seconds	Power Supply	380V, 50HZ,3-Phase
Size of Pallet	850×550×30 mm	Theoretic Working Area	60 m
Vibration Force	35.5 KN	Total Weight	2800 kg
Capacity	22 KVA	Overall Dimension	3700×1600×2700 mm

Size(LxWxH) mm	PCS/Mould	PCS/ Hour	PCS/ 8 Hour
400X100X200	7	630-840	5040-6720
400X150X200	5	450-600	3600-4800
400X200X200	4	360-480	2880-3840
400X250X200	3	270-360	2160-2880
240X115X 52	24	2400-2880	19200-23040

3.Product Application TOBEMAC Tilting drum concrete mixer are very popular all over the world,both for industry purpose and DIY jobs.According to the requirements of different customers,we have developed several kinds of concrete mixers for you reference.TOBEMAC provides two flexible packages on either production or trading,which enables the clients to get the best machines on the lowest price.
Otherwise,the power unit is optional,which could be equipped with diesel engine,petrol engine or electric motor. 4.Main Features 1).Special casting or steel-sheet gear ring made in one piece
2). Foldable frame for easy stock and transportantion
3).Solid frame for high stability
4).Large 520mm diameter wheels for stability and maneverability
5).Large drum diameter for excellent mixing results
6).Swivels and tilts 360° for easy and complete discharge
7).Driving shaft mounted on sealed ball bearing.
5.Production Flow6.Our service 1.Installation, debugging, operators trainning;
2.Maintanence:
A. when trainning your operators, our engineers will give them advice on how to operate the machines correctly;
B. we will send you the operation manual which can help you operate the machins properly, it can also help you to solve the common problems;
C. Call us at any time if you have problems about our concrete mixers;
D. If needed, we will send engineers to your site to solve your problems.
3.Providing some documents needed for your customs clearance, like commercial invoice, packing list, certificate of origin etc;
4.Spare parts supply;
6.Contact with us!Hansen Mao - General Manager ----------------------------------------------
HANGZHOU TOB ENGINEERING MACHINERY CO.,LTD.
ADD: HUTANG INDUSTRIAL PARK ,DACIYAN TOWN,JIANDE CITY,ZHEJIANG PROVINCE,CHINA

---
