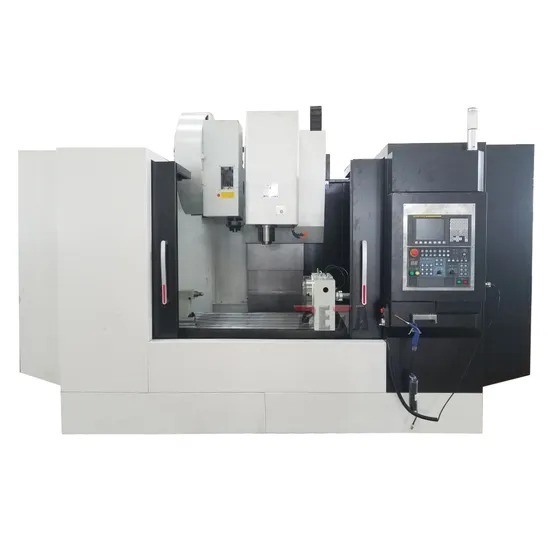

| Items | unit | VMC1300 |
| worktable : | ||
| Table size | mm | 1500x700 |
| T slot | no | 5 |
| Centre distance | mm | 135 |
| T-Width | mm | 22 |
| Max. load of worktable | kg | 1000 |
| machining range : | ||
| Longitudinal travel | mm | 1300 |
| Cross travel | mm | 700 |
| Vertical travel | mm | 700 |
| spindle nose to table surface | mm | 160-860 |
| spidle axis to column surface | mm | 760 |
| spindle : | ||
| Spindle taper | BT40 | |
| Speed Range | rpm | 40-8000 |
| Max.spindle torque | N.M | 52.5/95.5 |
| motor | ||
| spindle motor power | kw | 11 |
| Feed motor X/Y/Z | kw | 3/3/3 |
| feed : | ||
| cuttiing feed X/Y/Z | mm / min | 1-10000 |
| rapid feed X/Y/Z | m / min | 24/24/18 |
| Automatic tool magazine: | ||
| tool magazine capacity | piece | 24 |
| tool magazine type | Arm type tool magazine | |
| Max. tool diameter (full/empty) | mm | 80/150 |
| Max. tool length | mm | 300 |
| Max. tool weight | kg | 7 |
| Tool changing time (tip to tip) | s | 1.55/3.8 |
| Accuracy: | ||
| positioning accuracy | mm | ±0.005/300JIS |
| repeat positioning accuracy | mm | 0.003 JIS |
| Others: | ||
| overall dimensions(LxWxH) | mm | 3700x2500x3000 |
| N/W | KG | 9500 |
| Delivery time | 2 Months |
| Color | customized |
| Warranty period | 12 Months |
