| US$5,500.00-9,860.00 | 1 unit (MOQ) |
| Overall Parameter | |

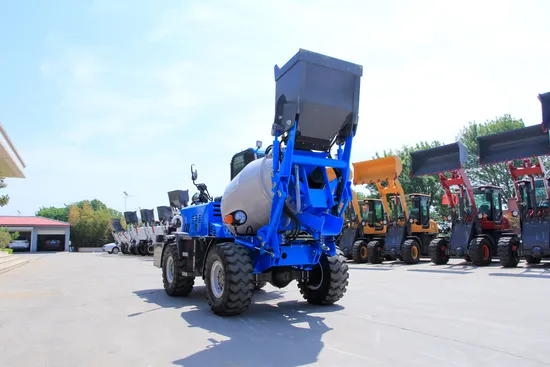

| Model | HR1000L |
| Dimension (L×W×H) | 3800*2100*2500mm |
| Weight | 3500kg |
| Performance | |
| Mixing Drum Capacity | Drum Capacity 1000L,Concrete Output: 0.7m³ Per Batch |
| Production Speed | Production speed: 7tanks/h |
| Traveling Speed | Low Speed: 0-25km/hour / High Speed: 0-40km/hour |
| Drum Rotation | Horizontal rotation 270° |
| Transmission Type | 4*4 |
| Water Tank Capacity | 500L |
| Diesel Tank Capacity | 60L |
| Hydraulic Oil Tank Capacity | 60L |
| Gearbox | 265integral |
| Drive axle | 1.8T wheel side decelerationbridge |
| Tires | 20.5-16 |
| Bucket capacity(m3) | 0.35 |
| Mixing capacity(m3) | ≥0.9 |
| Reduction ratio | 1:24 |
| Rotating speed(laps/minute) | ≥ 15 laps/minute |
| Reducer | Made in China |
| Gradeabiliy | 30° |
| Engine | |
| Model | Yunnei490supercharged |
| Manufacturer | Yunnei |
| Rated Power | 55kw |
| Emission standards | Euro II |
