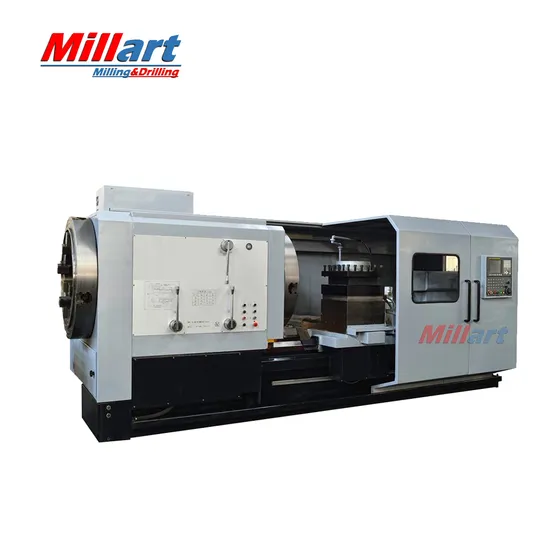

Qk1350 CNC Oil Country Pipe Thread Repair Lathe Machine

Product Description

Product description:
Technical parameter :
Technical parameter :

Item		Unit	QK1350
Max dia.swing over bed		mm	1250
Max dia.swing over cross slide		mm	850
Max.length of work-piece		mm	1500
Width of bed		mm	755
Spindle bore		mm	540
Power of spindle motor		Kw	22
Mode of spindle speed			Two gears, smooth adjustment
Range of spindle speed		r/min	Low:15-80 High:50-200
Max.traverse of X/Z		mm	X:550 Z:1250
X/Z rapid traverse		mm/min	4000
X-axis motor	Speed	r/min	1500
	Torgue	N.m	18
	Power	Kw	2.8
	Speed	r/min	1500
Z-axis motor	Torque	N.m	22
	Power	Kw	3.5
Tailstock quill	Diameter	mm	140
	Travel	mm	300
	Taper		Morse NO.6
Electric tool-post	Model		SLD170A04N
	No.of tool stations		Vertical four-station
	Dimension	mm	40x40
	Turret indexing time	S	5.6
Chuck			K66-1000 four jaw electric chuck

Standard accessories:
Fanuc 0i TF controller
4 position NC turret
Coolant system
Lubricating system
Work lamp
Semi closed cover
Manual tail stock
Double chucks
Rear support brackets
Pad iron
User manual
Operate tools
Optional accessories:
CNC system Siemens, GSK etc
Servo turret, Hydraulic turret, 6 position turret
Chip conveyor
Full closed cover
Hydraulic tail stock
Steady rest
Follow rest
Grinding attachment Company information:
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.

---
