Tractor with Front Rear Combined Stalk Mulcher

Product Description

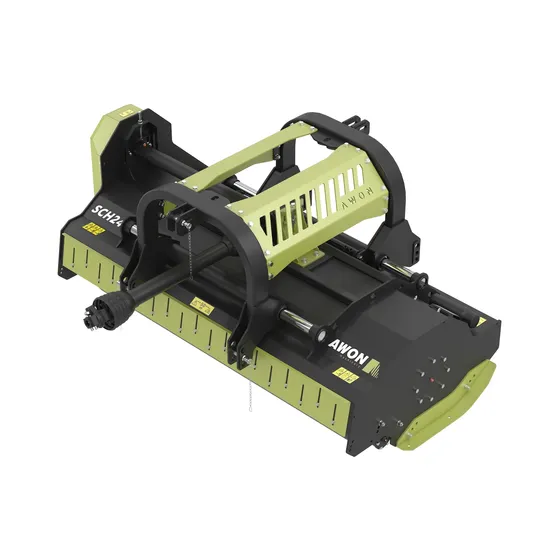

SCH240 +SCR690 straw returning machine is suitable for 220-260 HP tractors, with a working width of 6.9 meters. It is mainly used for crushing rice, wheat, corn, soybeans, cotton and small shrubs and returning them to the field. The front and rear cutter shafts operate simultaneously to improve straw crushing efficiency. After being chopped and evenly sprinkled on the ground, it can increase the nutrients of soil organic matter and achieve various effects such as increasing production gain & income, protecting the ecological environment, and reducing the rate of pests and diseases.
1. During operation, the front and rear weight is evenly distributed to optimize fuel economy.
2. The working widths of the front and rear cutter shafts overlap to avoid missing cuts;
3. The blades adopt a double-helical arrangement, which enables smoother startup and smaller workload;
4. SCH240 can be installed separately in the front or rear;
5. The hoods on both sides of SCR690 have a floating function in the vertical direction which have good performance to fit all terrains
6. Large-area width-displaying reflector makes a safer transportation and transition.
Standard Equipment • Hydraulic cylinders
• Hydraulic safety breakaway device
• Cable control panel
• Temperature and oil level indicator
• Hydraulic lock
• Oil radiator with oil filters
• Hydraulic cylinders with choke valves
• PTO shaft

Model	Dimension(mm)	Weight(Kg)	Cutting Width(mm)	PTO Input Speed	Number of blades	Tractor Power
SCR690	6900*1650*1260	3800	6900	1000	84	220-260

AWON GROUP founded in 2006 which headquarter in the Netherlands is an integrated solution provider for modern Agricultural, Orchard and Gardening applications. With much effort of these years, AWON machinery gradually grows up to a pioneer in modern agriculture from designing to manufacturing a wide range of agricultural implements which used in commercial crops and field crops, including: Mower, mulcher, wood shredder, cotton baler, straw baler etc. With AWON GROUP's excellent design concepts and reliable product performance to help users improve operating efficiency, reduce usage costs, and increase profits, thereby protecting the ecological environment and achieving sustainable development of agriculture and nature.
The following are our patent certificates: Design Patent (mulcher), Utility Patent (branch mulcher, mulcher blades, pick-up branch mulcher and telescopic mower)
The following are our original hand-painted drawings, originality has always been our pursuit!

---
