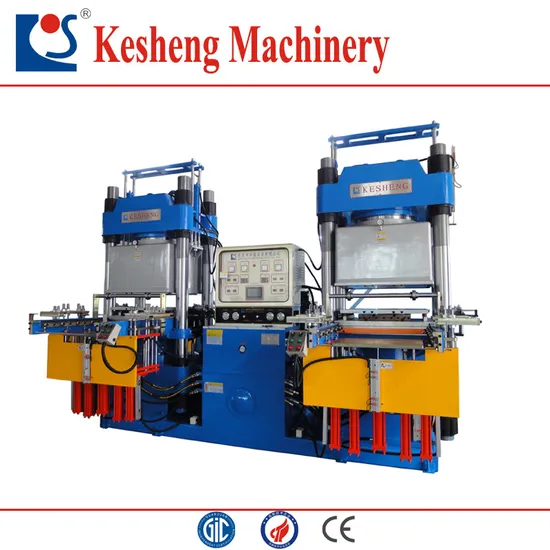

Ksv-4rt-400t Double Head Vulcanizing Machine Vacuum Machine

Product Description

Hign precision rubber and silicone vacuum machine, full automatic, fast speed, rail open mould style hydraulic molding machine.
Machine main feature:
1. Adopt dual power individual circuit design, stable, quiet, low failure rate, two axes can be operated simultaneously, saving 50%
2. Front mold is suitable for variety 2-layers or multi-layers molds, it is a kind of new multi-function machine
3. Lift and clamping mold speed can be adjustable, accuracy and reliability
4. Out-In mold positioning accuracy, positioning 100% security, to ensure that mold does not damage
5. Vacuum chamber can reach 650-700mmHg within 5 seconds
6. Has a fast, slow correction mode selection function, so that the mold can be correction more accurate, more secure

Applicable products:
Applied to Auto parts, rubber fasteners, O-ring, silicon button, home application rubber, bottle stoppers, industrial rubber, silicon/rubber multi-layer molded products.
Parameter:

Model	200Ton	250Ton	300Ton	350Ton	400Ton	500Ton
Clamping force(Ton)	200	250	300	350	400	500
Stroke(mm)	250	250	250	300	300	300
Heating plate size(mm)	up 503x508mm down 554x560mm	up 600x600mm down 600x650mm	up 600x600mm down 650x650mm	up 700x700mm down 750x750mm	up 800x800mm down 850x850mm	up 950x950mm down 1000x1000mm
Main cylinder diameter(mm)	355	400	450	475	500	560
Horse power(HP)	10x2	10x2	10x2	15x2	15x2	15x2
Electrical power(KW)	22	34	34	43	48	72
Gross weight(KG)	90000	11500	13500	16500	19500	23500
Machine size(L*W*H mm)	3000x2360x2330	3300x2710x2530	3450x2630x2600	3600x2950x2600	3800x3300x2800	4200x3600x3300

Core Values:
responsibility, execution,innovation
our mission:
forward-looking market orientation,trusted team of employees, continuous product innovation and service to create value for customers.
Our Vision:
to do the world-class rubber and plastic precision machinery manufacturers
We are look forward to hearing from you !

---
