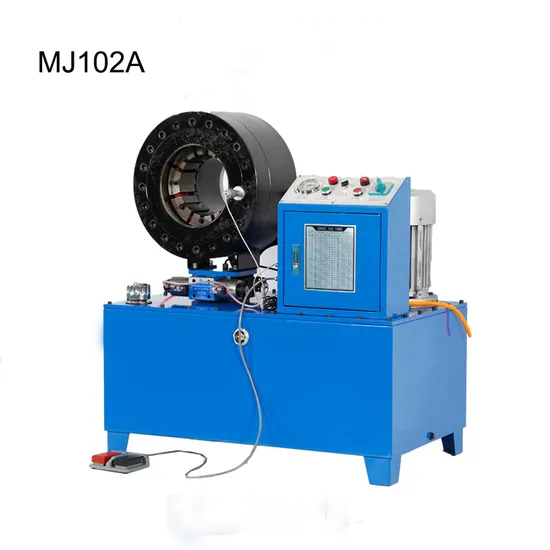

Dx68 Hose Crimping Press Hose and Fitting Assemblye Clamp Tool Hydraulic Hose Pipe Crimper Machine Mj102A 1/8" to 4"

Product Description

Product Description
Features
1.Efficient, fast pump
2.Big power
3.2100T crimping force
4.Precision control device,equipped with signal lamp
5.Automatic/ button/ foot pedal control operated
Product Parameters

Crimping inner diameter	1/4-4inch or 6-102mm
Opening&closing	±30mm
Max opening	185mm
Crimping force	2100T
Power of motor	4KW/220V, 5.5KW/380V, customize 7.5KW
Scale accuracy	0.01mm
Oil pump out-let quantity	10L
Rated pressure	31.5MPA
Voltage	220V/12V/380V/415v or customize
Operational way	foot control, button control, automatic
Dies mould	16sets
Dies number	15. 19. 23. 26. 31. 36. 41. 47. 55. 63 75 84 90 105 115 130 or customize
Extra parts	Work light, oil seal and so on

Product Show
Custom service: according to your stuff pressed, make suitable dies pattern and machine for youOptions: In addition to the standard die sets, a wide range of special die sets for different diameters, lengths and forms is available. Because the number of pictures displayed is limited, if the picture above does not find the model you want to press, please contact customer service immediately, and we will give you the most professional answerCustom Design
1. Any color can be customized; 2. Can specify the brand of machine parts, such as Siemens motors;
3. Molds can be customized in different models; 4. Can customize customer's own logo and machine OEM
Hot Products
Company Profile
Oriental Mj Hydraulic Machinery (tianjin) Co., Ltd.Oriental MJ Hydraulic Machinery(Tianjin)Co.,ltd has always been committed to the research and development of Hydraulic hose&
Tubing Processing Equipment, high and low pressure rubber hose, fitting joints, etc.
History of more than 18 years, offering customized solutions gained from research, precision and quality.Production process
FAQ
Q: Are you a factory?
A: Yes, we are a factory. We manufacture all our products and also manufacture for trading company. We can offer factory direct
price to you.
Q: Can you produce product with my own brand?
A: Yes, it''s available except famous brand which are not allowed.
Q: Can you customize 415 V voltage or 110V?
A: Yes, we can customize the voltage according to your demands, like 110V 240V 415V and so on.
Q: Delivery time
A: For most models of our factory machine, they are in stock, and can delivery within 24 hours once receive the payment.
Q: How long does the warranty?
A: For the warranty, it is 3 years, during this time, our factory have promise to provide the free spare parts to customer.
Q: How to pay?
A: You can pay by T/T, credit card, western union, L/C etc.

---
