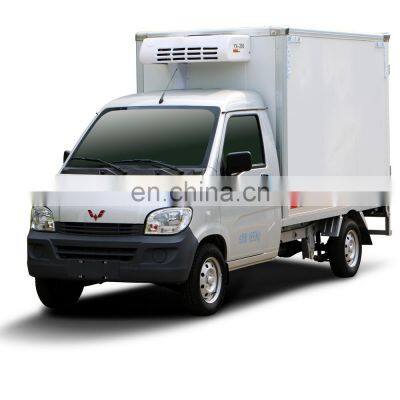

van type refrigeration small truck

Product Description

Product Description
Product Description
The chassis of wuling special purpose vehicle series is from SGMW, a joint venture by GM,Shanghai motors and Wuling motors, it sold 2 million units vehicle all over the world in year 2016.
We have professional refit vehicle team, and can not only produce large quantities of assembly line products, but design and manufacture customized products according to customers.
Specifications:

Item		LQG5020XLCBQY
Size	Dimension (mm)	4533*1503*2374
	Box container(mm)	2454*1328*1535
	Wheelbase (mm)	2950
Weight	Total weight(kg)	1850
	Curb weight(kg)	1360
Passenger Capacity		2
Performance	Min Turning Diameter(m)	11.8
	MIN.Clearance(mm)	135
	Max Speed(km)	120
Engine	Displacement(ml)	1206
	Model	LSI
	Max. Net Power(kw)	56
Refrigerator	lowest refrigerating temperature	—10℃
Fuel Consumption With The Regrigerator Closed(L/100km)		6.2
Transmission		5MT

Refrigerating unit specifications:

Item	LQG5020XLCBQY
Model	YX-260S
lowest refrigerating temperature	-10℃ (adjustable)
Refrigerating output(W)	1500W(-10℃)
Driving mode	Driven by engine
Voltage DC(V)	12V
Refrigerant	R404a
Reefer temperature adjusting	Electronic digit display
Safety device	High-low voltage switch safety protection
Defrosting mode	Manual/automatic defrosting

Production line:
Key components:
Detail:
Our Services
1.WARRANTY
we will provide one year warranty for our truck main parts, such as Engine, Transmission, Axle and Steering system.
2. TECHNICAL SUPPORT
Our rich-experience technical teams are standing by all the time for our vehicle products.
