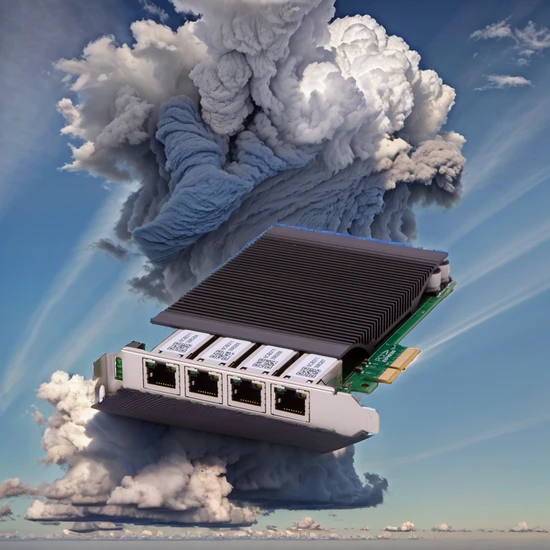

Mss Gigabit Ethernet Card for Industrial Applications

Product Description

MSS-APOE4 Specifications Introducing the MSS Gigabit Ethernet Card for Industrial Applications. This industrial gigabit ethernet card is designed for reliable and high-speed networking in industrial settings. With 4 ports and Power over Ethernet (PoE) capabilities, it is perfect for industrial networking needs. Compatible with microscopes and wired industrial applications, this card is a versatile solution for your industrial networking requirements.
Product Description Introducing the single-port Power over Ethernet (PoE) adapter card from Shanghai Mss International Trade Co., Ltd. This high-performance adapter card is designed to meet the reading habits of English-speaking natives, providing a reliable and efficient solution for powering external devices.
1. Single-port PoE output power consumption of up to 30W, allowing for the seamless operation of power-hungry devices. The adapter card also features an external large 4Pin power supply replenishment interface for added convenience.
2. Adaptive power consumption output for external devices, supporting Class 0, Class 1, Class 2, and Class 3 power levels. This ensures compatibility with a wide range of devices, making it versatile for various applications.
3. The adapter card adopts a wider RJ45 pitch design, enhancing ease of use and connectivity.
4. The interface is specially designed for industrial cable access, providing a secure and stable connection between the network port and cable. This solves the problem of unstable connections commonly faced in industrial environments. The adapter card is also compatible with common cable access.
5. The larger heat sink effectively dissipates heat, ensuring the stable operation of the adapter card even in poor heat dissipation environments. This guarantees long-term reliability and performance.
6. Carefully selected thickened gold RJ5 connectors ensure secure and reliable connectivity, minimizing the risk of disconnections or interruptions.
7. The 4 8-pin RJ45 head design saves valuable PCIe slot resources on the motherboard, maximizing the usability of your system.
Upgrade your power delivery capabilities with the single-port PoE adapter card from Shanghai Mss International Trade Co., Ltd. Enjoy reliable and efficient power distribution for your external devices, while benefiting from enhanced connectivity and stability. Order now and experience the difference!

Features
Controller	Intel I350
Cable medium	Copper cable
Cable Types	Cat 5E and Cat6:1000Base-T up to 100m (POE power supply requirements Cat5) Cat 5E and Cat6:100Base-T up to 100m (POE power supply requirements Cat5)
Bracket	Full-height Bracket
Thermal design power consumption (max)	5W
Single-port PoE output power consumption(max)	30W
Connector	4*1G RJ45
PCIe Bus Type	PCIe v2.1 x4 , compatible with x8 , x16
Rate	10/100/1000Mbps
Operating system support	Windows XP/Vista/7/8/8.1/10/11 Windows Server 2003 R2/2008 R2/ 2012 R2/ 2016 R2/2019 R2/2022 R2 Linux Stable Kernel version 2.6.x/3.x/4.x or later; Linux CentOS/RHEL 6.5 / 7.x or later Ubuntu 14.x/15.x/16.x or later FreeBSD 9 / 10 / 11 or later VMware ESX/ESXi 2.6.x/3.x/4.x/5.x or later

Technical Features
IEEE Standard	IEEE802.3af -2003 PoE standard IEEE802.3at -2009 PoE standard IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3z IEEE 802.1Q VLANs IEEE 802.3x IEEE 1588 IEEE 802.3az - Energy Efficient Ethernet (EEE)
PCI-SIG* SR-IOV	Yes
Jumbo frame packet	Yes
VMDq	Yes
WOL	Yes
PXE	Yes
DPDK	Yes
FCoE	No

Environment Features
Operating Temperature	0°C to 55°C (32°F to 131°F)
Storage Temperature	-40 to 85 (-40 to 185 )
Storage Humidity	90% non condensing under 35°C

LED Indicators
LED	1000Mbps, Orange bright + Green flashing
	10/100Mbps, Green flashing

Physical Features
PCB Size (mm)	149*104.3*1.6
weight (g)	251g

Order Information
M/N	Description
LRES2004PT-PoE	PCIe x4 1G Quad Port Copper Ethernet PoE Server Adapter
PS: The above details is just for reference,if there is any change,no inform will have.
