Pulp Cleaner High Concentration Sand Remover

Product Description

Product Description

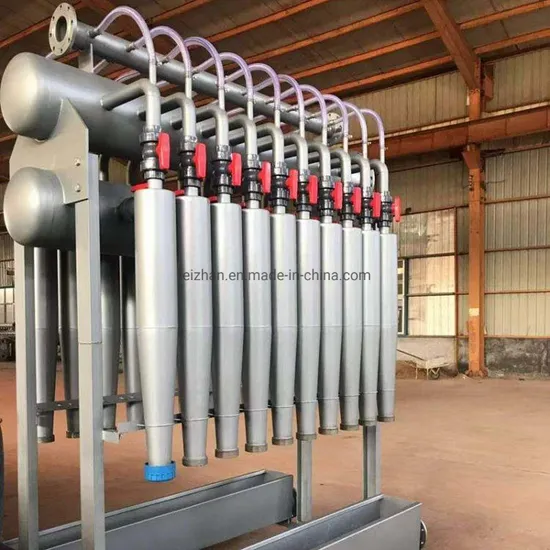

The cleaner is a device that uses the centrifugal principle to remove impurities with a different density in the slurry. The upper part of the cleaner is made of stainless steel, and the lower part is injection molded of polyurethane material. The inner wall of the main body is a spiral cone design.
The cleaner can be used in various slurry purification systems, mainly to remove heavy impurities such as sand and iron filings in the slurry with a density greater than the slurry (heavy slag remover) and mixed stickies and paraffins with a density less than the slurry , Hot melt glue, plastic sheet, foam, gas, ink particles and other light impurities (lightweight cleaner).
High consistency cleaner
The high-concentration cleaner is an ideal equipment used to remove various heavy impurities such as metals and sand in the pulp at a higher concentration to obtain high-quality pulp. It is also an essential equipment for the purification of waste paper pulp.
The high-concentration cleaner uses the difference in the proportion of fiber and impurities to separate impurities. The slurry enters the slag remover from the feed three-way tangent line at a certain pressure, and then rotates at a high speed. Due to the difference of centrifugal force, the heavy impurities are thrown to the wall of the vessel. Under the action of gravity, it gradually moves to the bottom of the cone and enters the slag tank. Due to the small centrifugal force, the fiber gradually travels to the central low pressure area, vortexes up after reaching the bottom, and is finally discharged from the good slurry outlet. The cone of the high-concentration cleaner has a certain taper, and the cone is longer, and the radius of rotation of the slurry in the cone is gradually reduced to prevent the speed of the slurry from being reduced during the rotation, and to ensure that the centrifugal force is strengthened, thus improving the paper stock Purification efficiency. The balance water pressure at the bottom is slightly greater than the slurry pressure, so that the fibers cannot enter the slag tank. Only sand, metal particles, rubber blocks, plastics and other heavy impurities sink into the tank, reducing fiber loss.Middle consistency cleaner
The medium-consistency cleaner is a pulp purification and slag removal equipment in the pulping system. It uses the different proportions of fibers and impurities to make iron filings, broken glass, sand and other heavy impurities and air, plastic sheets, foam, paraffin, stickies, etc. Light impurities are separated from the pulp to achieve the purpose of purifying the pulp. It can also be used to purify low-concentration pulp before the paper machine.
Low consistency cleaner
The low-concentration high-efficiency heavy-weight cleaner is a positive cleaner that uses the principle of centrifugation to remove impurities in the slurry. It can be used in various slurry purification systems to remove heavy impurities such as sand, iron filings, dust and larger ink particles in the slurry. The heavy-weight cleaner can be combined with the light-weight cleaner according to the difference of the slurry to achieve the ideal purification effect.
Filed use of cleaner
Technical Parameters

Model	LZ3	LZ4	LZ5	LZ6	LZ7	LZ8
Throught the put	1300-1700	1700-2500	2500-3200	3000-4500	4500-6000	6000-8000
Into the slurry concentration	2-5
Into the slurry pressure	0.3-0.4
Differential pressure	0.12-0.15
Slag discharge way	Continuous or intermittent automatic
