Heavy Duty Industrial Drive in Rack Systems for Warehouse Storage

Product Description

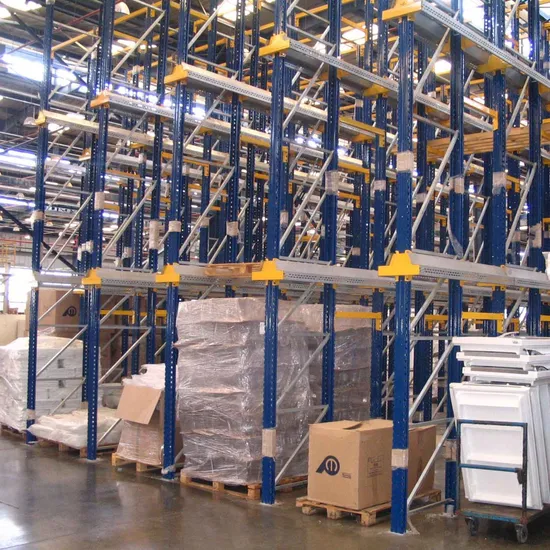

What is Drive in Pallet Rack
Drive-in pallet rack is a type of storage system designed to maximize space utilization in warehouses, especially commonly used for the storage of high-volume low SKU items. It consists of upright frames with horizontal rails that create channels deep enough for a forklift to enter. Pallets are then loaded onto the rails, one behind the other, creating a high-density storage solution.
Key Features
High storage capacity: By eliminating the need for wide aisles between racks, drive-in systems can significantly increase storage capacity compared to traditional pallet racking.
Space optimization: It can utilize over 80% of the available space in a warehouse.
Suitable for specific goods: Works best for storing large quantities of similar or identical items (homogeneous goods) with low stock rotation. Ideal for seasonal goods or cold storage applications.
Last-In, First-Out (LIFO) principle: Pallets are loaded and unloaded from the same side of the rack, following a LIFO principle where the last pallet loaded is the first one retrieved.
Specification

Upright	80*70, 90*70,105*70,120*85mm
Hole Pitch	76.2mm, 50mm, 50.8mm
Box Beam Size	80*50, 90*50, 100*50, 110*50, 120*50, 130*50, 140*50, 160*50
Upright Thickness	1.8/2.0/2.5/2.75/3.0 mm
Beam Thickness	1.8/2.0/2.5/2.75/3.0 mm
Frame Height	Up to 12,000mm
Beam Length	Up to 6,000mm
Capacity Per Layer	500-4000Kg
Finish	Powder coating(Color customizable) or hot-dip galvanized as requested

---
