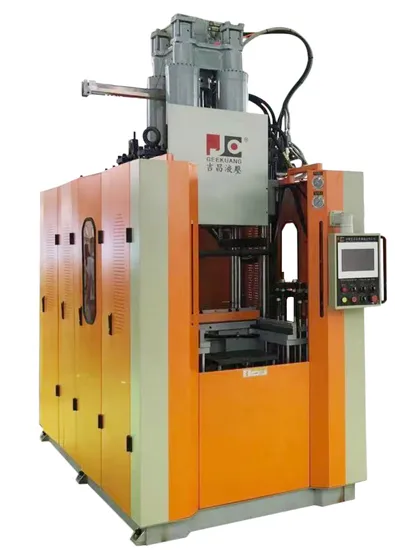

Vertical Injection Molding Machine PVC PE PP Plastic Manufacturing

Product Description

Product Description Main application field for the rubber&silicone injection molding press machine:
"Geekung Hydraulic Machinery" ( also called "Jichang Hydraulic Machinery", Geekung in Chinese pronunciation is Jichang) is the famous brand in China for Rubber Injection Molding Machine (Kauçuk enjeksiyon kalıplama makinesi) is ideal for the production of various natural&synthetic rubber parts,oil & heat resistant rubber parts, silicone parts,etc.,made with premium components and strict QC management,featuring high quality&reliable operation,durable service life,are being sold very popular across China and also were exported to many other counties such as USA,Turkey,India,Mexico,etc,enjoying good reputation among our worldwide customers.
Applications Rubber Injection Molding Machine (Kauçuk enjeksiyon kalıplama makinesi) is ideal for the production of various natural&synthetic rubber parts,oil & heat resistant rubber parts, silicone parts,etc
Features Features for our Rubber Injection Molding Machine:

Ergonomic low bed structure for easy opeartion Advanced proportional pressure&speed control from PLC Automated de-moulding and handling devices are optional Option to make silicone material Customized specifications are available Vertical/Horizontal structure with FIFO type injection systems: The injection device designed based on the first-in first-out principle can give priority to the injection of the plasticized rubber material first, and the metal surface in contact with the rubber material has a good cleaning function, which can effectively avoid the premature vulcanization of the rubber material and improve the final product quality.
Product Parameters

Model	XLB-V200T	XLB-V300T	XLB-V400T	XLB-V500T
Clamping force(ton)	200	300	400	500
Stroke(mm)	500	500	600	600
Platen size(mm)	600x600	700x700	700x800	800x850
Main piston diameter(mm)	355	450	500	560
Max.platen gap(mm)	550	550	700	700
Min. Mold thickness(mm)	60	60	100	100
Core Lifter stroke (mm)	200	200	250	250
Injection unit
Injection volume (CC)	2000	3000	4000	5000
Injection pressure (Mpa)	220	220	205	205
Screw diameter(mm)	45	45	55	55
Nozzle aperture(mm)	6	6	7	8
Others
System pressure (Mpa)	21	21	21	21
Horse Power(HP)	15	20	25	30
Heater power (KW)	19	22	27	31
Total power(KW)	36	40	52	58
Weight(Kg)	7200	9300	11700	14700
Dimension(LxWxH:mm)	2700x1200x3600	3100x1300x4000	3300x1400x4500	4000x1600x4500

Notes:the table only lists the normal popular standard models, more special larger sizes can be customized.
Exhibition
After Sales Service We supply quick after sales service, including online consultation,instruction and also onsite face-face service if required by the clients.
We have professtional after sales serivce team who can give you satisfactory quick response,including technical questions,trouble-shooting,installation,etc.
Our business principle is that :
Move ahead along with the spirit of "Responsibility& Sincerity for Customers" and "Cooperative&Enterprising Team" to "Mold a Better Future Together ".
It is our promiste and duty to execute the 3 No worries for clients:
No worries before order,
No worries after order,
No worries in produciton.

Packaging & Shipping The rubber vulcanizing machines are packaged well by the stretch film,and fixed professionally by the strong (solid) steel wire ropes,ensuring the machines remain still and won't slide in the container during the long distance of land and sea transportation, and reach the clients factories safely.
