US$15,000.00-18,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Product Type
PVC Edge Banding
Computerized
Computerized
Certification
CE, ISO9001:2008
Name
PVC Edge Banding Extrusion Line
Gearbox
Horizonal Gearbox 51/105
Edge Banding Width
10-200mm
Edge Banding Thickness
0.4-2mm
Use
PVC Edge Banding Making Machine
Final Product
PVC Edge Banding
Transport Package
Wood Base
Production Capacity
300sets/Year
Packaging & Delivery
Package Size
300.00cm * 200.00cm * 220.00cm
Package Gross Weight
4000.000kg
Product Description
Product Description

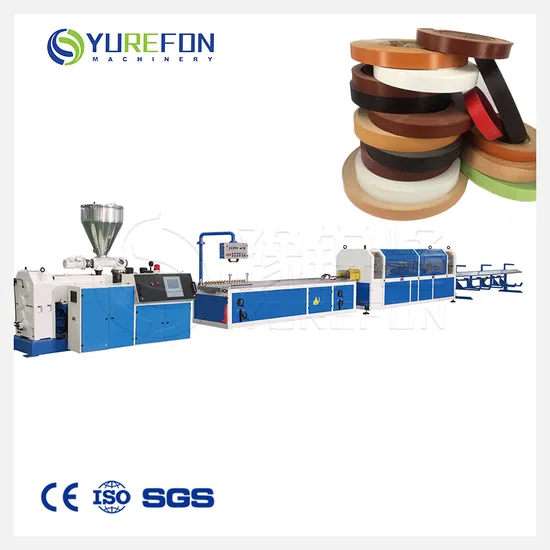

Furniture Plastic PVC Edge Banding Tape Extruder Extrusion Making Machine
Application product PVC Edge Banding:
PVC edge banding are widely use in furtinure,kitechen utensils and appliance teaching equiprement, laboratory cabinet desk decoration.
Production Flow:
Material →Heating Cooling Mixer →Material Feeding →Conical Twin Screw Extruder →Extrusion Mould & calibrator → Cooling →Printer → Haul-off Unit →cutter →stacker
Equipment Features:
For extruder Temperature Control system,Digital PLC control or Manual Temperature Control Meter
Easy Operation,Reliable performance,High Extrusion Efficiency,Easy Maintenance
Product Parameters
Main Model
| Model | YF120 | YF180 |
| Max. Product with(mm) | 200 | 300 |
| Max. Product height(mm) | 6mm | 10mm |
| Extruder model | SNJZ51/105 | SNJZ65/132 |
| Vacuum pump | no | no |
| Water pump | 1.1kw | 1.1kw |
| Hual-off motor | 1.1kw | 1.5kw |
Machine list
| Feeder | • To feed material into extruder; |
| Extruder | • World famous brand electrical component: Siemens, Schneid er, ABB etc;
• High torque gearbox with adopts NSK/SK F bearing;
• Siemens/WEG original motor achieved global after service;
• Bimetallic screw and barrel;
• Intelligent PLC controlling system with human-friendly interface. |
| Die head | • 3Cr13/3Cr17 material
• Complete set include extrusion die head, calibrator and cooling tank
• Adopt to single, co-extrusion, foam imitation marble profile |
| Cooling table | • Include full set of vacuum and water pump
• Width: 240mm
• Length: 6000mm
• Independent operation panel for easy operation |
| Haul off | • Upper/lower caterpillar driven separately and speed control by inverter
• Fast change type pads for easy operation
• Install plate is adopts aluminum material |
| Cutter | • Lifting saw cutter with adopts double station dust collection system
• Synchronous drivingby air cylinder or servo motor control |
| Stacker | • Stainless steel304 as touching material
• Discharge driving by air cylinder |
| Hot stamping machine | • Decorative pattern and film protection of product surface |
Technical information
| Parts | No. | Name | Brand |
| 1 Screw and barrel | 1 | Design | German design |
| 2 | Main materials | 38CrMoALA |
| 3 | Screw heating | Silicon oil heating |
| 4 | Barrel heater | Cast aluminum heater |
| 5 | Barrel has vacuum exhausting system |
| |
| 2 Driving parts | 1 | Main motor | Siemens Brand |
| | 2 | Gear box | Top brand in China |
| |
| 3 Electric parts | 1 | Inverter | ABB brand |
| 2 | Contactor | Schnei der brand |
| 3 | Relay | Schnei der brand |
| 4 | Breaker | Delixi brand |
| 5 | Temperature meter | RKC brand |
| 6 | Hauling motor | Densen brand |
| 7 | Hauling gear box | Hard surface gear box |
| 8 | Vacuum pump | Yvhuang brand |
| 9 | Water pump | Yvhuang brand |
| 10 | Cutting motor | Siemens brand |
| 11 | PLC | Schnei der brand |
| |
| 4 Mechanical parts | We use CNC machines to ensure the precision of our mechanical parts |
| |
| 5 Protection system | We have a whole set of protection system for our machines, such as:
1 Current overload protection
2 Torque overload protection
3 Oil path blocking alarm
4 Vacuum overload alarm, and so on. |
| For more technical information please contact us by email. |
Detailed Photos
Machine Picture:
Application
Sample by our machine
