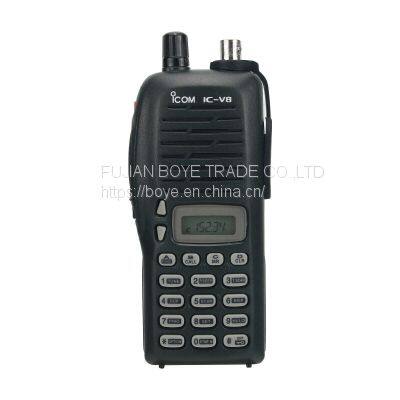

IC-V8 VHF Transceiver 5.5W VHF Radio Portable Walkie Talkie with 1650Mah Ni-MH Battery
Features:
- 5.5W output power
- MIL-STD810 grade durability
- CTCSS and DTCS encoder/decoder standard
- Optional DTMF decoder
Specifications:
General:
- Frequency range: USA 144-148MHz (TX), 136-174MHz*(RX); General (LM) 136-174MHz*(TX/RX)
- Operating temperature: -10℃ to 60℃; 14℉ to 140℉
- Frequency stability: ±10ppm (-10℃ to 60℃)
- Antenna connector: BNC
- Power supply requirement: 7.2V DC (6-10.3V DC acceptable; battery pack only for ICOM)
- Current drain (at 7.2V DC): transmit: less than 2.0A at 5.5W; less than 0.7A at 0.5W. Receive: less than 250mA at AF max; less than 70mA when standby; less than 20mA for power saving
- Number of memory channels: 107 (including 1 call and 6 programmed scan edges)
- Tuning steps: 5, 10, 12.5, 15, 20, 25, 30 and 50KHz
- Dimensions (without the size of projections): 54 x 132 x 35mm/2.1 x 5.2 x 1.4" (WxHxD)
- Weight (approx.): 350g/0.8 lb (with BP-222). 190g/0.4 lb (without the weight of battery pack)
Transmitter:
- Modulation system: variable reactance frequency modulation
- Output power (at 7.2V DC): 5.5W (high); 0.5W (low)
- Maximum frequency deviation: ±5.0KHz
- Spurious emissions: Less than -60dB
- External mic connector: 3-conductor 2.5(d)mm; 2.2kΩ
Receiver:
- Receiving system: Double conversion superheterodyne system
- Intermediate frequencies: 1st 21.7MHz; 2nd 450KHz
- Sensitivity (at 12dB SINAD): 0.16μV typical
- Squelch sensitivity: 0.1μV typical
- Selectivity: 65dB typical
- Intermodulation rejection: 65dB typical
- Spurious & image rejection: 75dB typical
- Audio output power (at 7.2V DC): More than 0.3W at 10% distortion with an 8Ω load
- External speaker connector: 2-conductor 3.5(d) mm; 8Ω
Package Included:
- 1 x Walkie Talkie Body
- 1 x 1650mAh Ni-MH Battery Pack
- 1 x Antenna
- 1 x Belt Clip
- 2 x Screws
- 1 x AC Adapter
- 1 x Charger Dock
- 2 x Instruction Manuals
>>
