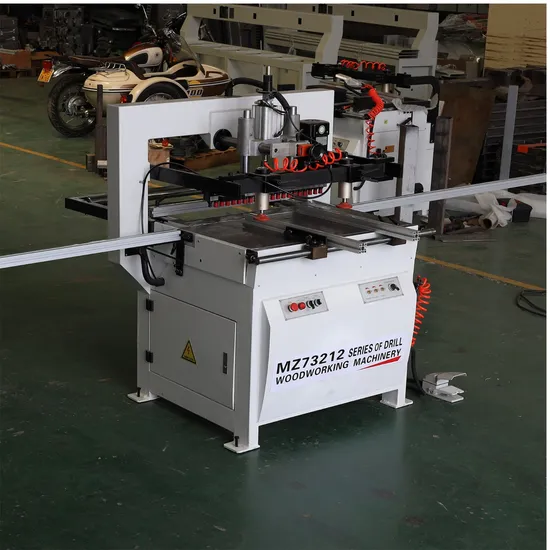

Multi-Spindle Drilling Machine for High-Precision Wood Processing

Product Description

YINGZHUO is a professional machinery and equipment technical enterprise combines the scientific research,explore,manufacture,sales and service together.
The company's motto is ''Customer first. Good will is the best policy'' Accordingly. it pures high quality goods and customer service and has won the titles ''High Standard'',''Fine Quality'', ''Famous Brand'' and ''Excellent Service'' from the government.
Furthermore,its products are all ISO9001 2008 and CE certified.We here at YINGZHUO are dedicated to continually perfecting our performance and providing high quality goods in appreciation for the support and cooperation of our customers. Product Description

Model	YZ-MZ73211	YZ-MZ73212	YZ-MZ73213
Installation tool length	57/70mm	57/70mm	57/70mm
Dia. of drill bit shaft	10mm	10mm	10mm
Max. drilling depth	50mm	50mm	50mm
Max. drilling diameter	35mm (single bit) 13mm(multi bits)	35mm (single bit) 13mm(multi bits)	35mm (single bit) 13mm(multi bits)
Total quantity of drill lines	1	2	3
Total quantity of spindles	21pcs*2	21pcs*2	21pcs*2
Workpiece Thickness	8-50mm	8-50mm	8-50mm
Weight	400kg	650kg	800kg
Voltage	220v/380v/415v	220v/380v/415v	220v/380v/415v

1. The machine is a porous processing machinery which can tilt 0-90°.
2. It can select appropriate cutting feed speed and adjusted drilling depth by adjustable air flow based on drilling hole size and plate hardness.
3. It can drill board in vertical and horizontal direction at the same time, convenient and flexible operation, multi-usage, high efficiency, large dimension plates.
4. It is a indispensable equipment in furniture factory, cabinet factory and other wood company.
Certifications

Packaging & Shipping

---
