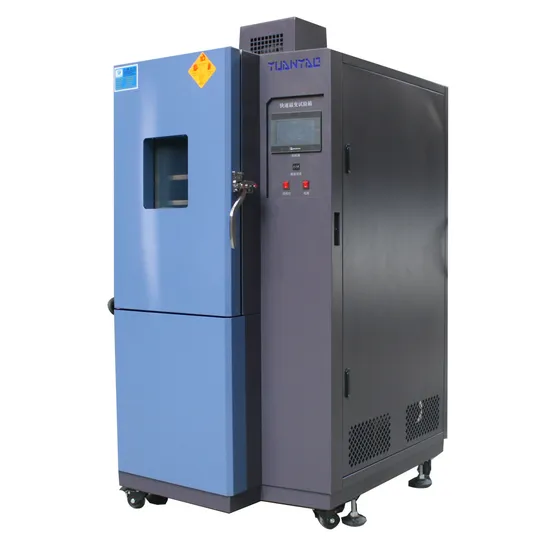

Linear/Nonlinear Rapid Rate Temperature Chamber Rapid Temperature Cycle

Product Description

Linear/nonlinear rapid rate temperature chamber rapid temperature cycle
Application:
It is suitable for testing various performance indicators of aerospace products, information electronic instruments, materials, electrical engineering, electronic products, and various electronic components under the condition of rapid temperature changes.
Test standard: GB/T2423.1-2001, GB/T2423.2-2001, GB/T2423.4-2001, etc.
Features:
1. Touch screen controller, support multiple languages
2. Temperature change rate is optional
3. Can support computer operation and real-time monitoring
4. Heating, cooling, humidification, dehumidification independent, unique BTHC balance temperature and humidity regulation method
Specification:

model	YICT-225	YICT-306	YICT-408	YICT-800	YICT-1000
Inner chamber size WxHxD(cm)	60*75*50	60*85*60	80*85*60	100*100*80	100*100*100
External chamber size WxHxD(cm)	depending on inner box size
Temperature range	-70ºC~150ºC(KS);-40ºC~150ºC(KL);-20ºC~150ºC(KR)
Rapid rate temperature range	-55ºC~+85ºC;-40ºC~+80ºC;-20ºC~+80ºC;0ºC~+80ºC;-60ºC~+80ºC
temperature ramp rate	3ºC/min,5ºC/min,8ºC/min,10ºC/min,15ºC/min(linear or non-linear)customization is available
Temperature fluctuation	±0.5ºC
Temperature uniformity	±1.5ºC(empty loading after stablize for 30 mins)
Resolution	0.01ºC
Internal chamber material	SUS#304 stainless steel
Exterior chamber material	cool rolled plate+powder coating
Insulation material	PU+fiberglass wool
circulatory system	centrifugal fan air circulation system
Heating system	SUS#stainless steel high-speed heater
Control System	touch screen controller
Cooling System	Compressor + finned evaporator + air/(water cooling system
Other omponents	Vacuum glass observation window
	test hole(50mm)
	control status indicator
	view light
	shelf(2 feeely adjustable)
safety protection	overheating circuit breaker
	Compressor overload protection
	Control system overload protection
	overload indicator light
	Phase sequence protection
	High voltage and low voltage protection
	Over temperature protection
	Fan overcurrent protection
Power supply	AC3Ψ380V 60/50Hz
Customized service	Non-standard or special requirements are all welcome

In addition to rapid temperature change test chamber, we are also manufacturing:
Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester,
Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester, ect.
Other styles with different configurations are also avaiable upon request, welcome to enquire and contact us anytime!
