Flat Die Pellet Feed Line and Animal Feed Flat Die Granualtor Milling Pelletizer Line

Product Description

Product Description
Flat Die Pellet Feed Line and Animal Feed Flat Die Granualtor Milling Pelletizer Line
It can combine a set of feed pellet production line according to user's demand to realize efficient and fully automatic production, automatic feeding, rapid feeding, smooth discharging
and even mixing, automatic heating, curing and forming in the pelleting process.
Grain length can be adjusted according to the needs of users, users can according to the different growth stages of animals, different physiological needs, different production uses of nutrition needs, according to the scientific formula of a variety of different sources of feed, in a certain proportion of evenly mixed, and according to the provisions of the process of production.
Production process: Crushing---Mixing---Pelleting---Cooling--Packing

application	For pig, cattle, sheep, rabbit, chicken, duck, fish, etc
raw material	corn, soybeans, fish meal, wheat bran, grass, alfalfa, straw etc
moisture content of material	12-16%
size of materials	1.5-8mm

Detailed Photos
Other Type Animal Feed Pellet Prpduction Line:

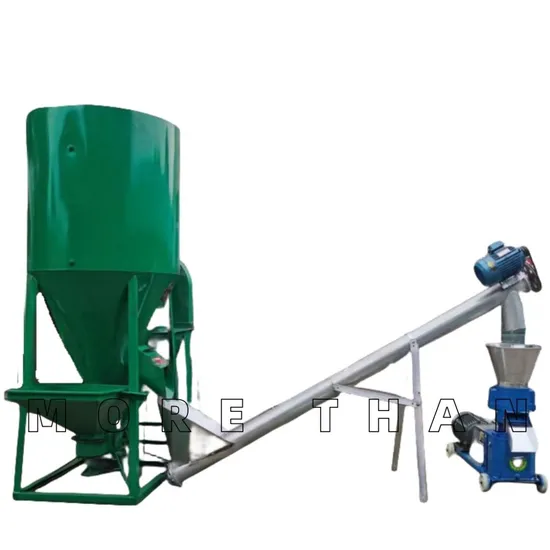

The working flow of small feed pellet production line is
1 straw grass, grass, these raw materials are crushed, need to use the grass cutter crushing or is a grass cutter kneading machine, 2 corn wheat bran or similar grain and other raw materials are crushed, need to use the hammer type crusher, these raw materials after crushing, in the mixing, need to use the mixer, that is, the feed mixer, Stir the raw materials after the grass and grain are crushed.
3 Through the conveyor to the feed pellet machine inside, start granulation, granulation is very fast, a moment can be discharged. If the output is small, dry it directly, and put it in the warehouse after drying.
4 If the output is relatively large, the feed particles need to be cooled by a cooling machine, then dried, packaged by a packaging machine, and then put in the warehouse.
Main pellet machine models:

Model	Wooden Packing Size(mm)	Weight (KG)	Output(KG/H)	Power
MT-125	830*350*700	85KG	80-100KG/H	4KW
MT-150	830*350*700	95KG	100-150KG/H	4KW
MT-160	830*350*700	110KG	150-200KG/H	4.5KW
MT-210	1200*500*900	220KG	200-300KG/H	7.5KW
MT-230	1190*540*1040	250KG	300-400KG/H	11KW
MT-260	1250*600*1040	300KG	400-500KG/H	15KW
MT-300	1440*670*1240	500KG	600-800KG/H	22KW
MT-400	1550*700*1440	600KG	900-1200KG/H	37KW
MT-500	2100*760*1650	800KG	1200-1600KG/H	55KW

Raw material and Usage
The raw materials used in the production of small feed pellet production line are more diverse. Wheat, corn, soybean, soybean meal, soybean cake, grass silage, straw, peanut shell, rice husk, bean curd residue, wine lees, grains, grains, bran and other raw materials. It can be granulated according to the combination ratio of its own raw materials. In the granulating process do not need to add water, do not need to dry, the natural temperature rise of about 70 degrees, can make starch gelatinization, the internal maturation of the particles deep, smooth surface, high hardness, long-term storage, is the ideal equipment for rabbit, fish, chicken, pig, sheep, cattle and small and medium-sized feed processing plants.
We have three types for the flat die pellet mill.They are motor type, diesel type and PTO type.
Different diameters are suitable for different animals.
Company Profile

Attentive responsible service
Pre-sales service1.Tailor-made efficient technical solutions for you.2.Tell us your needs, we will recommend the machine to you, professionally introduce the machine3.Service consultation in 365 days a year.4.24 hours to respond to messages in a timely manner service During the project1.Standardized precision production of production orders in 8 major departments.2. The operation of the machine will be tested before delivery, video will be given to the customer, and the machine will bechecked and accepted3.The entire production process is visualized, which is convenient to check the production progress at any time.4.The idling machine test is combined with the feeder test - strict quality inspection.After-sale service1. Accepting service consultation in 365 days a year.2. Our after-sales engineer can come at any time for maintenance.3. We will return customers on a regular basis, to ensure proper operation of the production line.4. We provide accessories for all equipment.
FAQ
1. Could I have prices of your products ?Welcome. Pls feel free to send us an email here. You will get our reply in 24 hours.2. Can we customize our logo/website/company name on products?Yes, we offer OEM and ODM service.3. Can I get a discount?Yes, the more quantity, the better the price. Please contact us to get the best price.4. Do you inspect the finished products?Yes, each step of production and finished products will be came out inspection by QC department before shipping.5. What's the delivery method?Normally by shipping line packed by wooden case in 20GP or 40 Feet container. Air express also available.
6. ls the pellet machine dry in and out?
What we usually call dry-in and dry-out means that the raw materials can be processed directly. This is aIse the raw material used contain a certain percentage of moisture, as longmisunderstanding.lt is not a real dry-in and dry-out, becaas the overall humidity is Between 10%-20%, there is no need to add water, and it can be done directly. lf the raw materials are very dry, you can spray a little water, a small amount, about 3%5%, so that it can be formed well and will not affect storage.
7. How do I operate the machine?
1)We offer the best operation manual with the machine.
2)Specific drawings or teaching videos are offered, if necessary
8. How do I get the machine?
1) Contact me for latest prices. We confirm the products details.
2)We send you the Pl with our bank account
3)We prepare the products after we get your advanced deposit
4)We send you photos of the machine before and after packing
5)You pay the balance, we deliver the machine
6) We send you the B/L and other papers, keep track till you get the machine

---
