Mg-Q35 Automatic Paper Bowl Machine Paper Cup Making Machine

Product Description

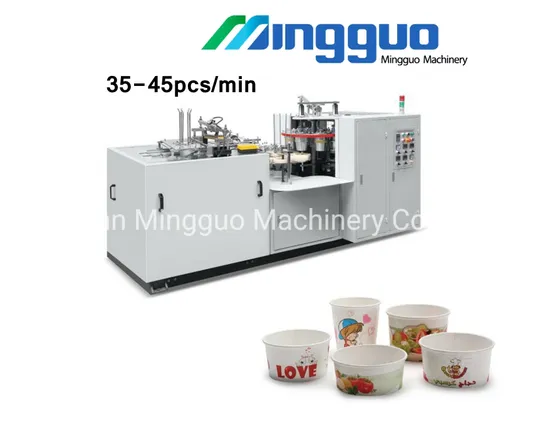

Q35 Paper Bowl Making Machine
Machine Description
MG-Q35 paper bowl machine developed on the technique of Korea machine. It has the function of auto paper feeding, preheating, sealingm oil injection, bottom cutting, heating, knurling, curling water line mark sack etc...It can alarm via sensor checking, counting itself. Q35 is good machine for making soup bowls and noodle bowls etc. Rolling feed square bottom paper bowl making machine, it uses pape roll in blank or printed as raw material, consists of automatic centre forward glue, printing tracking, fixed length and cutting, bottom glue. Bowl bottom forming, finished bowl collecting one time, the machine is more convenient, more efficient, more stable, can produce a variety of different paper bowls, leisure food bowls, bread bowls, drink fruit bowls nad so on environmentally friendly paper bowl machine equipment. Type counting itself Q35 is good machine for making soup bowls and noodle bowls etc. Rolling feed square bottom paper bowl making machine, it uses paper roll.

Machine Details
Technical Specification

Model	MG-Q35
Cups Specifications	5-50oz
Paper Specfications	150-350GSM single PE coated paper
Production Capacity	35-45pcs/min
Voltage	220V/380V 50HZ
Total Power	5.5KW
Total Weight	2500KG
Dimensions	2800*1200*1600mm(L*W*H)
Shipping Details	By sea/air transportation according to customer need
Paper Cup Usage	noodle bowls, meal bowls, kraft bowls, disposable bowls, soup bowls, salad bowls, ice cream bowls,etc
Optional Equipmen	Paper bowl inspection machine, Bowl lid forming machine, Paper bowl packaging machine, Paper straw forming machine

Samples
Pre-sales and After-sales Service
Pre-sales service a.Provide products and related consultation. b.Free provision of paper cup samples (excluding freight). c.Customers can visit the factory in person to visit the machine. After-sales service: a.Paper cup machine warranty: 1 year b.We can dispatch technologists to buyer's factory, guiding installation, adjustment for a period. c.We supply the consumable spare parts for free for one year use.
FAQ
1. What products can be made by your machines?
Tea cups, coffee cups, ice cream cups, noodle bowl, salad bowl, KFC bucket etc.
Almost all the regular or irregular paper containers for fast food and drinks

2. What volume of the cup/bowl/bucket that you can make?
From 2-190OZ, about 50-5000ml

3. Are you a source manufacturer?
Yes, any of the factory visit tour appointments at any time are acceptable and warmly welcomed

4. What about the payment term?
Usually 30%T/T in advance, 70% Balance before shipping

5. What should I let you know before getting a relatively accurate quotation?
--Sample pictures
--Specifications of cups (Top diameter, Bottom diameter, Height)
Draft is the best if possible.

--GSM of single/double PE coated paper
Warmly welcome to contact us
FOR more details and professional 1-to-1 service
