Factory Supply Ibr Corrugated Steel Roof Sheet Roll Forming Machine Price

Product Description

Product Description

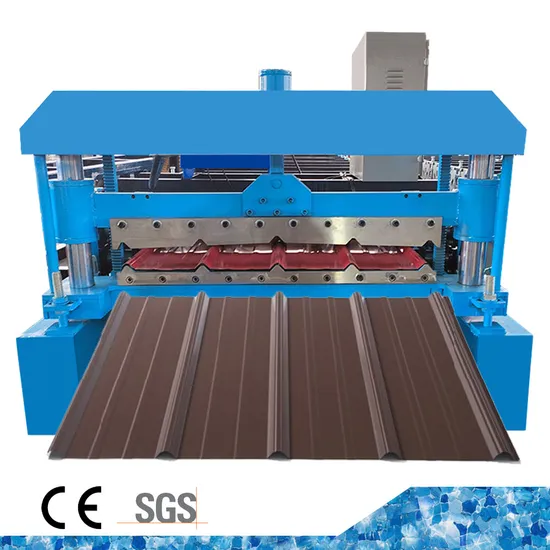

Factory Supply Ibr Corrugated Steel Roof Sheet Roll Forming Machine Price
Main Specification of Factory Supply Ibr Corrugated Steel Roof Sheet Roll Forming Machine Price

Item	Parameters
Roller Material	High grade 45# steel. Hard chrome plating, 0.05mm.
Main Frame	350# steel. More stable and no shaking.
Middle Plate	20mm. We use thicker plates to ensure stability of our products.
Forming Steps	11-20 steps, according to the drawing.
Shaft Material	Φ70 mm, high grade 45# steel. Treating process: tempering- finish turning, high rigidity, hard to deform.
Cutting Blade Material	Cr12, hardness HRC60-62. Treating process: heat treatment- plane abrasion- wire electrode cutting.

Details of Factory Supply Ibr Corrugated Steel Roof Sheet Roll Forming Machine Price
Pro-feed Coil
Frame structure: cantilever type Sheet width: less than 300mm; Coil inner diameter: φ508mm; Expansion mode: manual expansion; Inner diameter expansion range Phi 480-560 mm; Coil maximum outer diameter :φ1300mm; Carrying weight: ≤3t
Roll Forming System
Material of the roller : High grade No.45 forged steel. Roller station : 12-14 rows. Thickness of feeding material : 0.3-0.8mm
Servo Tracking Hydraulic Shear
Guillotine system developed for trouble-free and burr-free cutting made of 60 HRC hard steel.
PLC Control System
The whole line adopts PLC control, LCD display touch screen, man-machine interface
You can set any length and quantity

Packaging & Shipping

Company Profile
FAQ
Q1: How long is the warranty?
A1: We guarantee a 12-month after-sale service .Any problem when using ,call or mail us ,we will advise on technically sound methods .If needed ,we will provide free accessories Q2: Can I have my own customized product?
A2: Yes, your are welcome customized requirements for color, logo, design, package, carton mark, etc.
Q3: How can I get sample and how long will it take?
A3: Sample policy is different for different items. Please kindly contact us to get details.

Q4: What's the MOQ?
A4: MOQ is different for different items, please kindly contact us for confirming.

Q5: How do I pay for my purchase order?
A5: T/T, L/C at sight, Western Union, MoneyGram

Q6: What is your terms of payment?
A6: For regular order, T/T 30% as deposit, and 70% before Shipment. We'll show you the photos of the products and packages before you pay the balance

Q7: How about your delivery time?
A7: Generally, It will take about 7~15 days to send goods out. The specific delivery time depends on the items and the quantity of your order

---
