US$20,000.00-29,800.00
|
1 Piece
(MOQ)
|
Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Processing Precision
+-0.006
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, ISO 9001
Product Name
CNC Vertical Lathe for Brake and Drum CNC Lathe
Max. Turning Diameter
500mm
Max. Processing Height
0-500mm
Chuck Type
15′′ Hydraulic
Dimension
1950X1850X2650mm
Transport Package
Wooden Case
Production Capacity
300/Year
Packaging & Delivery
Package Size
185.00cm * 195.00cm * 265.00cm
Package Gross Weight
5500.000kg
Product Description
Product Description

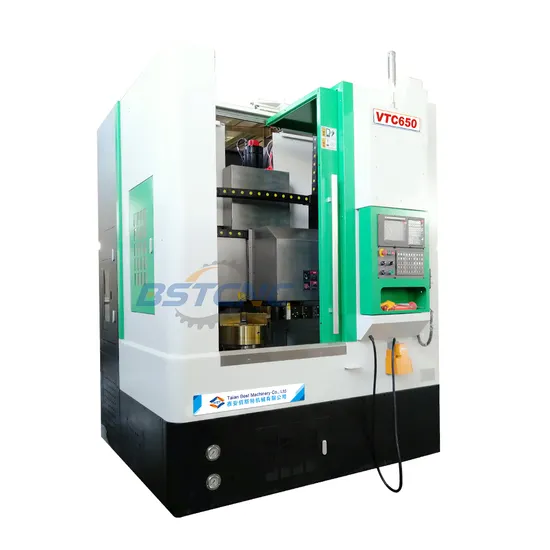

The VTC series machine tool is an automated CNC machining tool used for machining the inner and outer cylindrical surfaces, conical surfaces, end faces, grooves, and chamfers of parts. It is particularly suitable for machining automotive brake hubs, wheel drums, clutch pressure plates, flywheel shells, and other components; Add C-axis function, configure power turret, and complete drilling, tapping, and milling processing.
Product Parameters
| Items | VTC650 |
| Processing Range | Max.swing diameter | 650mm |
| Max.turning diameter | 500mm |
| Spindle | Spindle taper | A2-8 |
| Diameter of bearing | 120mm |
| Speed Range | 50-1250rpm |
| Output Torque | 475Nm |
| Chuck | Chuck Diameter | 15" Hydraulic |
| Turret | Turret type | Horizontal 8 station |
| Turret specification | 100mm center height |
| Cutting tool size | ะค25/ั32/ั40mm |
| Travel | Travel of X axis | -50-325mm |
| Travel of Z axis | 550mm |
| Max.processing height | 0-500 |
| Linear guide ways and screw | X/Z linear guide ways | 45 Roller |
| X/Z screw diameter | ั 40mm |
| Feeding | X axis rapid feed | 15m/min |
| Z axis rapid feed | 12m/min |
| Cutting feed | 0.1-5000m/min |
Power and Torque of Motor | X axis power/torque | 2.4kw/15Nm |
| Z axis power/torque | 2.4kw/15Nm |
| Main motor Power/torque | 15/18.5kw-190Nm |
| Dimension | Length X width X height | 1950X1850X2650MM |
| Weight | 5200KG |
Standard configuration:
-GSK980 control system;
-Taiwan 3-jaw hydraulic chuck and hydraulic station ;
-Taiwan 8 station servo turret;
-Taiwan HIWIN ball screw and Linear guideways;
-Full enclosure machine guard and Stainless steel splash guard ;
-Automatic lubrication system and Cooling system ;
-Lighting system with 3 color light, Leakage protection ,pneumatic Sliding door ;
-Chain chip conveyor with chip chart;
