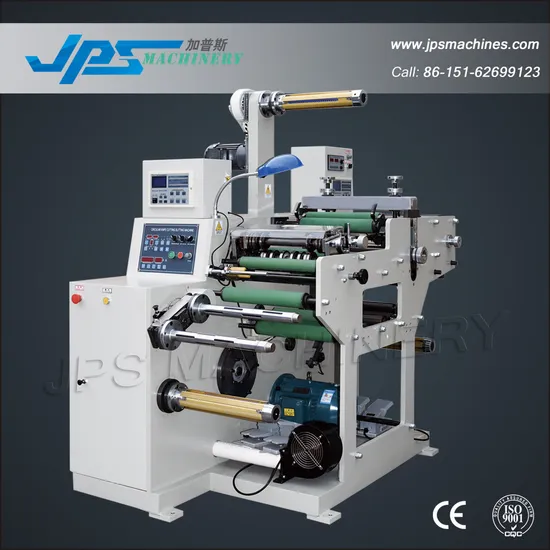

Jps-320c-Tr Automatic Blank Label Printing Paper Rotary Die Cutting & Slitting Rewinding Machine/ Auto Film Sticker Roll Die Cutter Slitter Rewinder

Product Description

Jps-320c-Tr Automatic Blank Label Printing Paper Rotary Die Cutting & Slitting Rewinding Machine/ Auto Film Sticker Roll Die Cutter Slitter Rewinder ( Turret Rewinder)
Feature:
This product is suitable for blank label. Die cutting,slitting , rewinding can be in one process. It have automatic tension controller system for unwinding and rewinding, Automatic inflating air for air shafts, Optional Start and stop by foot. This machine has automatic meter count, number count, length preset, automatic-stop when up to length preset functions. The unwinding is controlled by the two photoelectric eyes. The whole machine structure is compact, fast and with high efficiency. Operation is easy and steadily
Technical Parameters:

Model	JPS-320C-TR
Slitting speed	120m/min
Die cutting speed	80m/min
Die cutting length	240-476mm
Max paper width	320mm
Max Unwind diameter	700mm
Max rewind diameter	700mm
Dimension	1.7x 0.9x1.4m (LxWxH)
Machine weight	About 720kg

Functions:
1. Advanced turret rewinder for two shafts
2. Automatic metering and counting
3. Semi-automatic tension control for unwind, waste draining
4. Automatic tension control for rewind
5. Foot switch available .
Optional functions:
1.Lamination 2. Double-station 3.clockwise and counter-clockwise rewinder
Standard configuration:
1. One rotary die cutting station
2. One slitting station
3. With 1 pc 3" unwinding shaft
2 pcs 1.5" rewinding shafts
one pc 1" rewinding shaft
4. With meter/number counter
5. With two photoelectric eyes
6. With 8 pcs rotary knife
7. One magnetic brake, two magnetic clutches
After-service:
1. Warranty for machine: 12months
2. After-service: A reply within 24 hours
3. A free training in our factory available before delivering machines
JPS-320C-TR Machine Configurations:
JPS-320C-TR Machine Versions:
JPS-320C-TR Machine Applications:
Factory Show
JPS-320C-TR Similar Machine
Customer Show

---
