Handheld Suin SA2300 Power Quality and Energy Analyzer for Measuring Parameters in Power Grid

Product Description

Product Description SA2300 Three Phase Power Analyzer

With the development of power equipment, the power grid system is becoming more and more complex, and the resulting fault problems are more difficult to troubleshoot, for this reason, our company has recently developed a multi-functional, lightweight, cost-effective power analyzer to help you more quickly and accurately troubleshoot the power system fault, more comprehensive and systematic monitoring of power quality.Widely used in monitoring the power quality and track faults.

Application
The three phase power analyzer is a special portable product for monitoring and analyzing the operating quality of power grid, which can provide harmonic and power measurement of the power operation, and can record and store the data of the power grid operation for a long time.
It is suitable for electric power, petrochemical, metallurgy, railway, industrial and mining enterprises, scientific research institutions, metrology departments, etc. Especially suitable for all voltage, current, power, electric energy, harmonics, phase and other electric parameters to do comprehensive analysis and diagnosis.

Design Features Economical, compact and simple to use
Provide all necessary measurement function
4.3 inch color LCD touch screen
32GB Micro SD card is used for storage

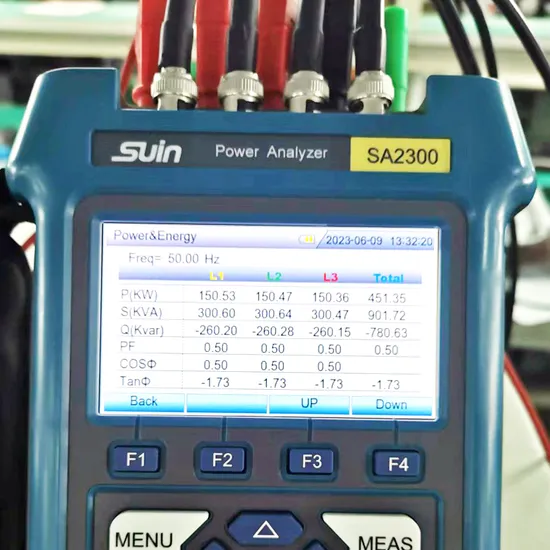

Detailed Photos
Product Parameters

INPUT
4 current input channels+4 voltage input channels
3 PHASE MULTI-POWER SYSTEM
1P/2W(1P+NEUTRAL 1P IT NO NEUTRAL) 1P/3W(1P Split Phase) 3P/3W(3P DELTA) 3P/4W (3P WYE)
DATA REFRESH RATE
1s
MEASUREMENT
Voltage/ACV (Urms, Upk)	Range	5~600Vrms
	Accuracy (L1/A,L2/B,L3/C)	±0.2%±2counts
	PT ratio	1 to 10000, variable
Current/ACA (Irms, Ipk)	Range	1500A, with SY-1500A current probe
	Accuracy	±0.2%±5counts
	Optional current probe	ST08-5A, CTC0080-50A,CTC0130-100A, PY-3000A, SY-6000A
	CT ratio	1 to 10000, variable
Frequency	Range	42.5-57.5Hz (50Hz nominal) 51-69Hz (60Hz nominal)
Harmonic	Number	1-51th
	Accuracy	±0.1%±n x 0.1%
	THD	±2.5%
Power		Active power (P), Reactive power(Q), Apparent power(S), Power Factor (PF), cosФ (DPF)
Energy		Active energy (EP), Reactive entergy(EQ), Apparent energy(ES)
Transient Event		Dips/swell
Logger	Interval	1s to 60 minutes
	Memory	32G Micro SD card
GENERAL
Display		4.3 inch color touch screen/480x272
Language		Multi languge including Chinese, English, etc.
Communication Port		USB Host, LAN
Dimension/Weight		158x200x47mm/1kg
Power		18650 lithium ion 3.6V x 2, 5100mAh / 6h or DC 5V/3A adapter
Safety standard		IEC61010-1, CATIII 600V

Certifications
Company Profile SUIN Instruments Co., Ltd is a high-tech company and concentrates on R&D, production, test, sales and service of test & measurement instruments, electrical products, application software, etc. It already won below titles depending on the super technical advantage: High-tech Enterprises in Hebei Province, Hebei Industrial Design Center, Hebei Academician Workstation, Shijiazhuang Industrial Design Center, Engineering Research Center of Shijiazhuang electrical test instrument, Shijiazhuang Enterprise Technical Center, China's Key Enterprises in electronics instruments industry. Suin is located in Luquan optical valley park, provincial capital Shijiazhuang of Hebei in China and covers an area of 12,000 square meters. Because of good base, test equipments and SMT production line to develop digital electronic instruments, the yearly capacity can reach to 30,000 sets in total. Also, Suin built modern training base covering area of 2000 square meter and up to 300 people could be accommodated at the same time to carry out the theoretical study and practical operation. Suin major product includes Signal Generator, DMM, Spectrum Analyzer, Frequency Counter, Power Quality Analyzer, Dual Mixer Time Difference System, Programmable DC Power Supply, etc., which are sold well both in domestic and oversea market.
