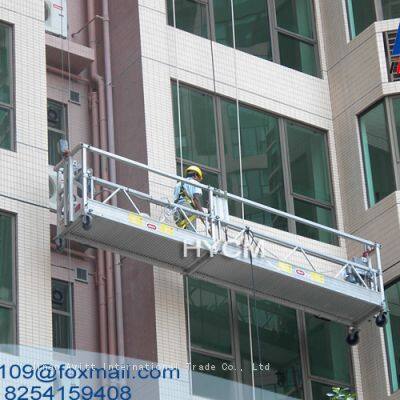

630kg Cradle Wall Motorized Scaffolding Facade Cleaning Equipment Suspended Platform
Description:
Suspended Platform as a kind of Temporarily Installed Suspended Equipment, also known as Temporary Equipment, is a lightweight steel or aluminum-made object capable of carrying persons onto a certain height so as to facilitate the aerial work, such as maintenance, decoration, cleaning, etc.
It is easy for operation, flexible for moving, reliable in safety. Besides, it is not necessary to build scaffolding in the construction, the efficiency will be promoted and the cost will be reduced.Therefore, ZLP series versatile knock-down platforms provides workers safer, easier and more efficient platform access.
Model No.
| ZLP630
|
Rated load(kg)
| 630
|
Lifting speed(m/min)
| 9～11
|
Hoister model
| LTD63
|
Motor power(kw)
| 2×1.5
|
Brake torque(N.m)
| 15.2
|
Rated stretch of front beam(mm)
| 1100-1700
|
Suspending Platform
| No. of platform rack
| Single rack
|
No. of platform
| 3
|
L×W×H(mm)
| (1.5+2+2.5)×690×1180
|
Suspending mechanism(kg)
| 2×175 Kg
|
Counterweight(kg) --optional
| 25×40pcs
|
Diameter of steel rope(mm)
| 8.3
|
Voltage(v) 3PHASES
| 220V/380V/415V (customized)
|
Ambient temperature
| -20℃~+40℃
|
Ambient relative humidity
| ≤ 90%（25℃）
|
Applications:
1. Cleaning and maintaining of the exterior wall of high-rise building.
2. Painting, decoration and refurbishing of exterior walls.
3. Installation projects and other construction working of outer walls of high-rise building.
4. Aerial working of ship, large tower, bridge, dams and large chimneys.
5. Install and maintain for high-rise building elevator hoistway, shipbuilding industry, seagoing vessel, warships welding maintain.
>>
