S11-160 Low Loss 10kv 3 Phase Step Down Oil Filled Distribution Transformer

Product Description

Product Description

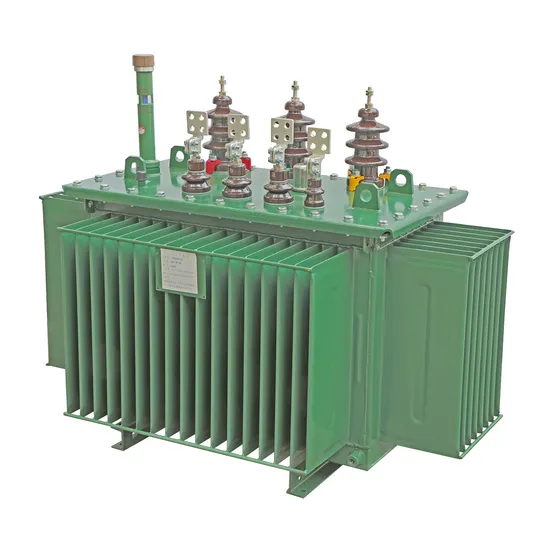

S11-160 10KV Low Loss 3 Phase Step Down Oil Filled Distribution Transformer
The oil immersed power transformer series products of Guangzhou Yibian Electrical Equipment Co., Ltd. use corrugated oil tanks instead of oil tanks with tube and plate radiators, which not only have good heat dissipation, light weight, and low oil consumption, but also can adjust the internal pressure of the transformer. The transformer body and transformer of the product are separated from the atmosphere to prevent the aging of transformer oil and maintenance free.
The distribution transformer is designed using CAD and its performance meets the standards of IEC60076, GB1094, and GB/T6451. The iron core of the distribution transformer is made of cold-rolled grain oriented silicon steel sheets, manufactured by an automatic production line using step lap technology. The oil tank of the distribution transformer is a corrugated oil tank, processed and manufactured by GEOGE's automatic oil tank production line in Germany. The surface pretreatment liquid and coating powder are both international brand products. The oil tank undergoes degreasing, acid washing, phosphating, electrophoresis pretreatment on the automatic production line, followed by powder spraying and high-temperature solidification. The transformer has strong corrosion resistance on the surface. The coil of the distribution transformer is wound with high-strength enameled wire (or paper wrapped wire), with uniform distribution of ampere turns, reasonable insulation structure, and strong short-circuit resistance. The distribution transformer body adopts a non hanging core structure, and the sealing components are made of high-quality acrylic rubber, which can effectively prevent photo aging and thermal aging.
Technical specifications:

Model	No-load loss (W)	Load loss (W)	No-load Current (%)	Size L*W*H (mm)	Weight (kg)
S11-160	280	2310/2200	0.4	1055*640*1210	715

Product Features:
- Use high quality CRGO cold rolled silicon steel to ensure low no-load loss;
- Good energy-saving effect, significant social and economic benefits;
- Strong anti short-circuit and lightning impulse resistance;
- High reliability support structure;
- Can be used both outdoors and indoors;
- Voltage and rated power of our transformers can be customized. Available voltage: 6kV to 350kV. Company Profile
Company Profile: Guangzhou Yibian Electrical Equipment Co., Ltd.
Guangzhou Yibian Electrical Equipment Co., Ltd., hereinafter referred to as (Guangzhou Yibian), was established in 2005 and is located in Panyu District, Guangzhou, the central area of the Pearl River Delta. The registered capital is 52.23 million yuan. The company covers a total area of 50000 square meters, including over 30000 square meters of modern factory buildings. It also has dedicated office buildings, technology research and development centers, product testing centers, employee dormitories, and green belts in the factory area, creating a beautiful environment.
The company has an elite team that is united, practical, and pioneering. There is a complete management structure including the Marketing Department, Production Department, Energy Storage Business Department, Quality Inspection Department, Supply Department, Technology Department, Senior Engineer Office, Finance Department, Administrative and Human Resources Department, and Enterprise R&D Institution Office. And the company has strong technical strength, with several senior engineers and mid to senior technical personnel with decades of work experience, as well as more than 60 production backbones, and a staff of around 100 people.
Guangyi Transformer specializes in manufacturing high-quality electrical equipment such as dry-type transformers (SCB), industrial and commercial energy storage equipment, medium and low voltage switchgear, prefabricated substations (YB), combined transformers (ZGS), oil immersed power transformers (S11/S13), etc. All products have formed a mass production scale, with advanced product technology, stable quality, reliable operation, and large-scale network operation. The product sales network is centered on the Pearl River Delta and Guangdong Province, gradually expanding to all parts of the country. Some products are exported to Mozambique, Rwanda and other places in Africa. The products are widely used in power systems, real estate enterprises, industrial and mining enterprises, municipal facilities, tunnels and bridges in various regions. The annual production capacity of dry-type transformers is 3.6 million kVA, prefabricated substations are 200 units, combined transformers are 200 units, oil immersed power transformers are 300000 kVA, and complete sets of equipment such as medium and low voltage switches are 2000 units.
Equipments of Our Company
Production Equipment:
Certifications
Certificates: FAQ
1. Q: Are you a manufacturer? A: Yes, we are a professional manufacturer, specializing in Oil immersed transformer, Dry type transformer, Amorphous alloy transformer, Pad mounted transformer, Compact transformer substation, Switchgears, Circuit breaker, etc for over 19 years.
2. Q: What is the MOQ? A: We accept OEM/ODM projects. The MOQ=1 unit. It would be great if you can provide technical drawing and technical specification document. If not, you can contact us for further communication.
3. Q: What is the production time? A: It will take about 20-25 days based on the order requirements.
4. Q: What is the payment terms? A: T/T, LC or Cash
5. Q: How long is the guarantee? A: We offer 24 months(2 years) guarantee. The key parts over 30 years.

---
