Application:

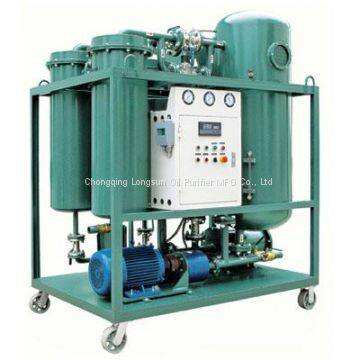

It is used for treating the unqualified turbine oil, especially the seriously emulsified turbine oil. This series, which can rapidly and effectively remove the water, gas and impurities aiming at turbine oil’s nature of high water content, easily emulsified and high impurity content, make the oil reach new oil standard.
Features:
1.Breaking emulsification thoroughly by means of polymeric material.2.Dewatering high-effectively with once and for two steps dehydrator method, TY series Can thoroughly remove the liquid water, free water and 80% of dissolved water.
3.With zhongneng’s distinctive removing impurities technique filtering through double FH trapezoidal network and absorbing by polymeric material, this machine can make the ß3 surpass or equal to 200 and make the cleanness not surpass grade 6 (NAS1638).
4.With the trapezoidal, spiral, automatic back flushing system.
5.With the advanced dielectric condensation devices.
6.On-line oil purification can be carried out with turbine or water turbine automatically without any person.
Advantages:
This machine breaks emulsification thoroughly, and the oil is very difficult to be emulsified again after treatment. Its dehydration volume is large and it can drain off the water on line. TY series, which prevent lubrication system from damage, can effectively extend the lifetime of oil and protect turbine and other machines.
Technical Parameters
Item
| Unit
| TY-10
| TY-20
| TY-30
| TY-50
| TY-100
| TY-150
| TY-200
| TY-300
|
Flow rate
| L/H
| 600
| 1200
| 1800
| 3000
| 6000
| 9000
| 12000
| 18000
|
Vacuum Degree
| MPa
| -0.06 ～ -0.095
|
Working Pressure
| MPa
| ≤0.3
|
Temperature Range
| ℃
| 40 ～ 70
|
Water Content
| PPM
| ≤100
|
Cleanness
| NAS
| ≤6 grade (NAS1638)
|
Demulsification Value
| min
| ≤15 (GB/F 7305)
|
Heating Power
| kW
| 12
| 15
| 18
| 24
| 45
| 60
| 72
| 84
|
Total Power
| kW
| 14
| 17
| 20
| 27
| 48
| 66
| 81
| 97
|
Inlet/outlet Caliber
| mm
| 25
| 25
| 25
| 32
| 42
| 50
| 50
| 60
|
Weight
| kg
| 400
| 450
| 500
| 600
| 700
| 900
| 1050
| 1550
|
Dimension
| Length
| mm
| 1280
| 1350
| 1350
| 1400
| 1500
| 1500
| 1600
| 1800
|
Width
| mm
| 750
| 900
| 950
| 950
| 1000
| 1200
| 1350
| 1400
|
Height
| mm
| 1450
| 1450
| 1500
| 1600
| 1650
| 1800
| 1800
| 1850
|
>>
