3D Dynamic CO2 Laser Marking Engraving Machine Paper Leather Plastic Wood Fabric

Product Description

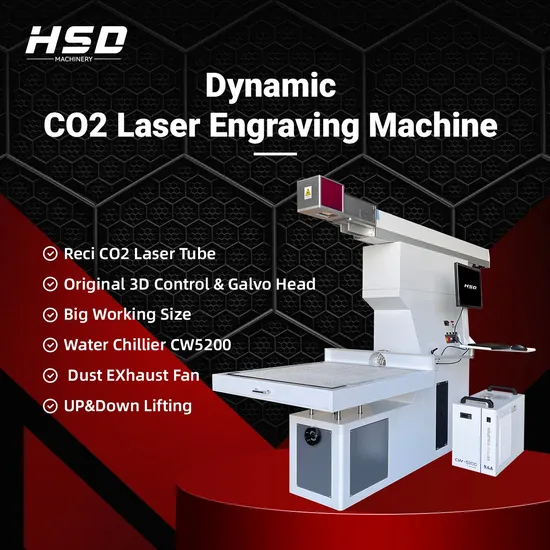

3D Dynamic CO2 Galvo Machine Leather Wood Fabric Marking Engraving Cutting
Machine Features
CO2 Non-metallic laser marking machine is controlled by the computer, can mark on the surface of processing materials along the desired track through 10.64um laser beam's beam expanding, focus, galvanometer's deflection to achieve the engraving effect.

The CO2 laser marker can engrave on all non-metal maeterials like jeans,leateher,plastic,wood,acrylic,papaer....

The non-metallic laser marking machine made by our company has good beam mode, stable system performance, free maintenance, is suitable for the large quantity, multispecies, high speed, high precision and continuous production in the industrial site.
Technical Parameters

Laser Type	Dynamic CO2 Laser
Laser Power	80W 100W 130W 150W
Model	H-C80 H-C100 H-C130 H-C150
Laser Wavelength	10.64μm
Marking Area	600*600mm/800*800mm
Marking Depth	≤1.2mm
Marking Speed	7000mm/s
Minimum Line Width	0.012mm
Minimum Character	0.15mm
Repeated Precision	±0.003mm
Life-span of Fiber Laser Module	100 000hours
Beam Quality	M2 <1.5
Focus Spot Diameter	<0.01mm
Output Power of Laser	10%~100% continuously to be adjusted
System Operation Environment	Windows XP /7/8/10 32/64bits
Temperature of Operation Environment	15ºC~35ºC
Power Input	220/110v single phase
Power Requirement	<400W
Communication Interface	USB
Machine Dimension/after package	2600*850*1450mm
Optional	Rotary Device, Moving Table, other customized Automation

Samples Show
It is widely used for marking and cutting clothing leather, buttons, craft gifts, food packaging, fabric, rubber products, etc. Bamboo and wood products, paper, leather, cloth, plexiglass, epoxy resin, fabric, plastic, rubber, artificial stone and other non-metallic materials.
Application
FAQ
1.What are the primary products of your company?
Our primary products include laser marking machine, inkjet printer machine,paging machine.
2.Where is your laser marking machine applied to?
Our laser equipment is applied to metal, non-metal, textiles, leather, shoes, advertisement, gifts, electronic components, stamp,etc
3.Which countries are your laser machinery sold to?
Our products are widely exported to Poland, Russia, Ukraine, Korea, Thailand, Egypt, Brazil, Australia, Singapore, Saudi Arabia,
Turkey, India, Italy, and other countries.
4.How long is the delivery time?
The products will be delivered to you within one week after the order is confirmed.
5.What certificate has your company got?
All of our product with CE, ISO

---
