Dx-26 High Quality Amplificador Audio Subwoofer Watt Big Power 4 Channel Power Amplifier

Product Description

Product Description
Product Specification

Specification
Input	Active Balanced, 18K
Max. Input Level	+20dBu
Input Gain Range	-40dB to+12dB
Output	Active Balanced, 112
Max. Output Level	+20dBu
Output Gain Range	-40dB to+12dB
EQ
EQ Filter Types	1st or 2nd Order High or Low Shelf, Parametric
Shelving Filter Boost/Cut Range	±5dB
Shelving Filter Frequency Range	Low Shelf 19. 7Hz to 2kHz, High Shelf 3. 8kHz to 21. 9kHz
Parametric Filter Boost/Cut Range	+15dB/-30dB
Parametric Filter Frequency Range	19.7Hz to 21. 9kHz, 1/24 Octave Steps
Parametric Filter Bandwidth	Four Octaves to 1/64 Octave
Input and Delay	0-100 milliseconds
Output Delay	0-20 milliseconds
Crossover
HPF and LPF Frequency Range	19.7Hz to 21. 9kHz, Off
Available Filter Types	12dB/Oct Butterworth, 12dB/Oct Bessel, 12dB/Oct Linkwitz-Riley 18dB/Oct Bessel, 18dB/Oct Linkwitz-Riley 24dB/Oct Butterworth, 24dB/Oct Bessel, 24dB/Oct Linkwitz-Riley 48dB/Oct Buatterworth, 48dB/Oct Bessel, 48dB/Oct Linkwitz-Riley
Limiter
Threshold Range	-20dBu to+20 dBu
Ratio Range	1.2: 1 to INF: 1
Attack Time Range	0.5ms to 50ms
Release Time Range	10ms to 1 Second
Frequency Response	20Hz to 20KHz, ? . 25dB
THD	<0. 01%@1KHz, +20dBu
Dynamic Range	>110dB 20Hz-20KHz unweighted
Audio Sampling Rate	48KHz
Propagation Delay	1. 46mS
Signal LEDs & Clip	Inputs: -20/Mute,-10,0,+10,Clip (dBu or VU) Outputs: -20/Mute,-10, 0,Limit Threshold, Clip (dBu or VU)
AC Requirements	Universal Power Supply, 100-240VAC, 50/60Hz, 20W max
Environmental	40°F-120ºFF (4ºC-49ºC)Non-condensing.
Weight	9 Lbs
Dimensions	19.0"Lx 1.75"Hx 8.5"D (48.3 cm*8.9 cm *21.6cm)

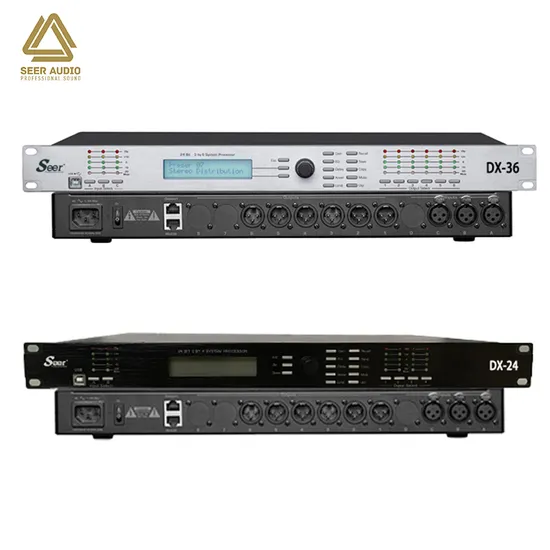

Detailed Photos
Company Profile
Company Information
Guangzhou Seer Audio CO.,LTD is a professional sound system manufacturing company. Our factory specialize in manufacture speaker cabinet, loudspeaker, Tweeter component, amplifier, processor and stage equipment. Our sound system company was established in 1997, and the manufacturing company was established in 2004.We focus on the quality and stability of our products and aim to provide high quality products to our customers. Seer Audio use the most advanced engineering to make sure every product meets the requirements of the most professional and demanding applications. We are always working on expanding the scope of business all over the world. Our products won great deal of honour, such as ISO 9001:2000 quality system authentication, all of our goods pass ROSH test and got CE certificate. We have full confidence in our factory and our future.
Exhibitions
Project
Certifications
Company Activity
FAQ
FAQ
Q1. Can we have our logo or company information on your profucts or packages?
A1. Sure. We accept OEM/ODM orders. Just let us know your requirements.

Q2. Are you a pro-audio manufacturer or trade company?
A2. We are a 100% manufaturer located in Guangzhou.We specialize in R&D, manufaturing, sales.
Q3. How long can we expect delivery?
A3. The high season takes a month and the low season takes 15 days.
Q4. What is the What is the minimum order quantity? How to pay?
A4. The minimum order quantity is one, we only accept T/T.
Q5.How old is the company?
A5.Our company was established in 1997 and has a history of 27 years.

---
