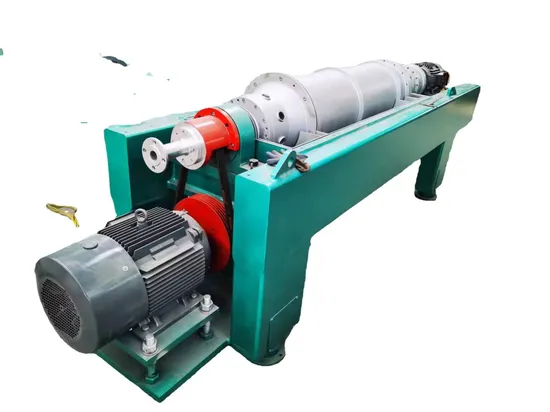

Superior Quality Oil Well Drilling Mud Decanter Centrifuge Separator

Product Description

WHAT IS CENTRIFUGE DECANTER


When you need to separate solid / liquid mixtures with high solids content, you can choose a decanter centrifuge. In contrast to chamber filter presses, these solid vortex centrifuges or decanter centrifuges operate continuously. High centrifugal forces separate finely divided solid particles from the suspension.
Our decanter centrifuges are modular in design and can be used in a wide range of industries. Centrifuges can be optimally adjusted for specific applications. Applications range from sludge dewatering to classification or wet classification to solid classification.

HOW DOES IT WORK

The feed product is pumped into the decanter centrifuge through an inlet. Feed into a horizontal bowl and then rotate. The bowl consists of a cylindrical portion and a conical portion. The separation takes place in the cylindrical part of the bowl. Fast rotation produces centrifugal forces of up to 4000 x g. Under these forces, solid particles with a higher density are collected and compacted on the wall of the bowl. The scroll (also a screw conveyor or screw conveyor) rotates inside the bowl at slightly different speeds. This speed difference is called a differential speed. In this way, the scroll conveys the precipitated particles along the cylindrical portion of the bowl to the conical end of the bowl. At the smallest end of the conical portion of the filter bowl, dehydrated solids leave the filter bowl through the discharge port. The clarified liquid exits through the mating disc (internal centrifugal pump).
With a 3 phase decanter centrifuge, it is possible to separate 3 phases from each other in one process step only. For example, two liquids which cannot be mixed because of different densities (e.g. oil and water) are separated from a solids phase. The heavy liquid (water) collects in the middle between the oil and the solids layer. Thus the two liquids separated from each other can be drawn off from the decanter. The solids are transported via the scroll to the discharge openings as it happens also in 2-phase separation.
Typical applications of 3-phase separation are the production of edible oils such as olive oil, oil sludge processing, the production of biodiesel .

CENTRIFUGE DECANTER APPLICATIONS
Waste water treatment food processing Petrochemical Petroleum Waste recycling Fish processing Chemicals Beneficiation Organic Chemicals Polymer industry Inorganic chemical industry
CENTRIFUGE DECANTER TECHNICAL

Model	Drum diameter mm	Length mm	Maximum speed rpm	Hightest separation factor g	Mixture capacity m3/h	Motor Power Kw	Host weight Kg	Dimension(L*W *H) mm
LW250-900	250	900	5000	3500	0.5-3	11/5.5	1100	2300*700*1300
LW350-1500	350	1500	3800	2850	1-5	18.5/5.5	2200	3500*1000*1300
LW400-1200	400	1200	3400	2581	1-8	22/7.5	2200	3350*1000*1100
LW400-1600	400	1600	3400	2581	2-10	22/7.5	2400	3850*1000*1250
LW400-1800	400	1800	3400	2581	2-12	22/7.5	2500	4000*1000*1250
LW450-1800	450	1800	3200	2572	5-20	30/7.5	3000	4200*1170*1350
LW450-2000	450	2000	3200	2572	5-25	30/7.5	3300	4400*1170*1350
LW530-2280	530	2280	2800	2350	10-50	45/15	4000	4750*1300*1500
LW600-2400	600	2400	2600	2265	15-65	55/18.5	5000	4800*1350*1950
LW650-2600	650	2600	2400	2100	20-80	55/90	6500	4900*1450*1650
LW720-2500	720	2500	2200	1950	25-90	75/90	7000	5000*1600*1700
LW800-2560	800	2560	2000	1800	30-100	90/132	8000	4600*2200*1400
LW800-3200	800	3200	2000	1800	30-110	90/132	9000	5200*2200*1400
LW900-3200	800	3200	1800	1650	30-150	132/200	10000	5500*2300*1800

CENTRIFUGE DECANTER ADVANTAGES
Clean appearance No more odour problems Easy to install and operating equipment Small footprint Operate for different sludge types Operating for thickening or dewatering Reduced labour costs More process flexibility and higher levels of performance
Package show from Shenzhou Decanter centrifuge

---
