Hot Sale 4 Roller Filter Flaten Mesh Machine

US$10,500.00
1 sets
US$10,400.00
2+ sets

Basic Info.

Model NO.
sd 120
Weight (Kg)
1500
Condition
New
Roller Diameter
300-600mm
Machine Type
Flatten Expanded Metal Mesh Machine
Color
Optional
Certification
CE ISO
Weight
1500kg
Warranty of Core Components
2 Years
Video Outgoing-Inspection
Provided
Marketing Type
Ordinary Product
Core Components
PLC
Key Selling Points
High Productivity
Product Name
Flattening Machine
Voltage
220V/380V/415V/440V
Power
7.5kw
Transport Package
as The International Standard
Trademark
SADE
Origin
Hebei, China
Production Capacity
20 Set/Sets Per Month Flattening Machine

Product Description

Product Description
Product Application Pressing machine is used to flatten steel net, so that the surface is flat, not only flatten steel net surface is
smooth and no glitches, there will be a certain percentage of the growth in the length of the steel net

Technical parameter :
Model
LE-YP800
LE-YP1000
LE-YP1300
LE-YP1500
LE-YP2000
Width
800mm
1000mm
1300mm
1500mm
2000mm
Thickness
0.5-3mm
0.5-3mm
0.5-3mm
0.5-3mm
0.5-4mm
Roller diameter
300/280mm
320/300mm
350mm
350/450mm
580/600mm
Weight
2T
2.5T
4T
6.5T
16T
Motor power
3KW
4KW
5.5KW
7.5KW
22KW

Detailed Images
TYPE1:Two roller flatten expanded metal mesh machine :

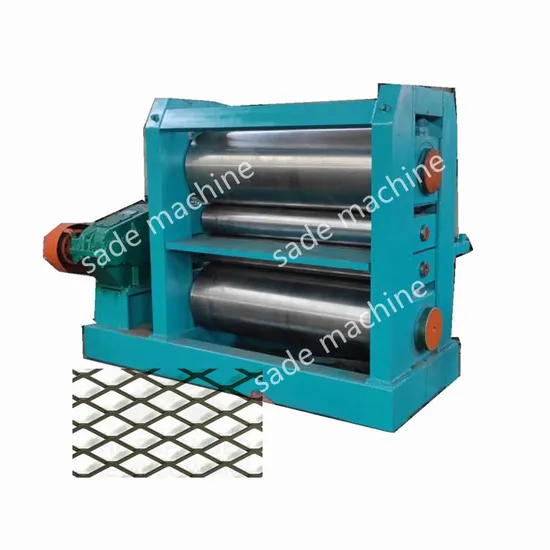

TYPE2:Four roller flatten expanded metal mesh machine :
