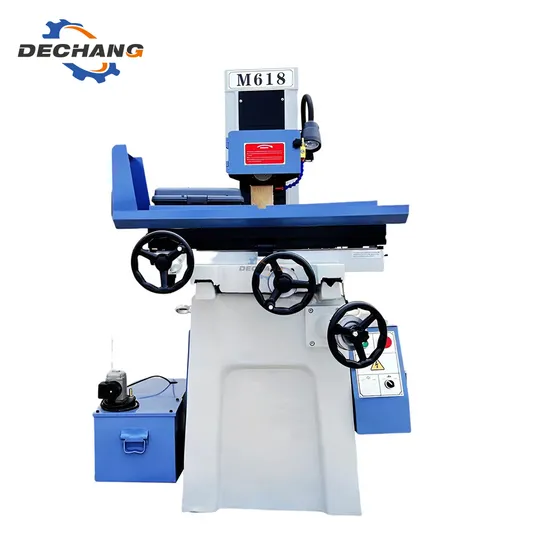

Precision Manual Plane Surface Grinding Machine M618A Cheap High Quality Surface Grinder

Product Description

Precision Manual Plane Surface Grinding Machine M618A Cheap High Quality Surface Grinder
Product Description
The main performance characteristics:
1. The machine has reasonable structure, good rigidity, beautiful appearance, convenient operation.
2. Worktable ball track using steel materials for high precision steel balls, abrasion resistance, easily moved and labor saving, and can be greatly improve work efficiency.
3. Former after skidway through careful scraping flower, not only slide smoothly, and wear-resisting, maintain good accuracy, flexible and convenient operation. manual worktable driven by synchronous belt transmission, wear well.
4. The spindle adopts super precision ball bearing P4, after strict selection after the pre pressure measurement, assembled in the greenhouse, and with the labyrinth design completely waterproof, In order to ensure the service life of the bearing and the grinding surface roughness.
5. No vibration, low noise motor spindle.
6. According to the needs of users with a permanent magnet sucker or electromagnetic sucker.
Application:
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.
Product main technical parameters:

Specifications					Units	M618A	M820	M1022
workbench	Worktable size (L * W)				mm	460×180	480×200	540×250
	Max. travel of table (L * W)				mm	500×190	530×220	560×260
	Table T slot (slot number x slot width)				mm	1×14	1×14	1×14
Grinding head	The grinding wheel size (o. d * w * i. d.)				mm	φ180×13×Φ31.75	φ200×20×Φ31.75	φ200×20×Φ31.75
	Distance spindle center line to working table				mm	335	440	420
	Grinding wheel speed			50HZ	r/min	2850	2850	2850
				60HZ	r/min	3440	3440	3360
The amount of feed	The vertical (up and down) feed handwheel feed			Handwheel per turn	mm	1.25	1.25	1.25
				Handwheel per lattice	mm	0.01	0.01	0.01
	Transverse (front and rear) feed handwheel feed			Handwheel per turn	mm	2.5	2.5	4.0
				Handwheel per lattice	mm	0.02	0.02	0.02
Motor power			Spindle motor		kw	1.1	1.1	1.5
			Cooling motor		W	40	40	40
working accuracy	The process surface of the base level of the parallel degree				mm	300:0.005	300:0.005	300:0.005
	Surface roughness				μm	Ra0.32	Ra0.32	Ra0.32
Machine weight		Net weight			kg	650	750	850
		Gross weight			kg	750	850	950
External size (L * w * h)					mm	1550x1150x1590	1680x1140x1760	1680x1140x1760
Packing size (L * w * h)					mm	1000x1150x1760	1140x1250x1940	1200x1400x1940

Detailed Photos

Company Profile
What We Do?
Our main products are :
CNC Lathe Machine, CNC machining center, CNC Milling Machine, CNC Turning Center, Lathe machine, Milling machines,,Drilling machine, Sawing machine, Grinding machine and other metal-working machines and accessories.
Our Machines Application Fields:
1.Aviation industry: 5-axis machining centers, horizontal and gantry machining centers, precision CNC lathes, etc. can be used to process parts such as aircraft wings, fuselages, empennages and engines
2.Railway locomotive manufacturing industry: CNC lathes, vertical and horizontal machining centers, and five-axis machining centers can process high-speed rail locomotive bodies, axles, wheels and other parts
3.Mold manufacturing: high-speed CNC milling machine, high-precision CNC machining center, precision grinding machine can process automotive panel molds, die-casting molds, forming extrusion molds, etc.
4.Power equipment manufacturing industry: For power generation equipment, heavy CNC gantry milling machines, large floor milling machines, large CNC lathes,
In addition, our machine tool products can also be used in weapon manufacturing, electronic information equipment manufacturing, metallurgical equipment manufacturing.

WHY CHOOSE US?
QUALITY COMMITMENT
Company is committed to bring efficient, high precision and stability to all users by insisting on providing our customers with high quality machines.Company machines passed ISO, CE Certificates.
SERVICE SUPPORT
The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual.
Company also provide provide online technical support, voice and video guidance.
Our Facotry
MANUFACTURER CAPABILITY
The company has purchased high-precision and high-efficiency advanced equipment from well-known domestic and foreign brands, and the company's machining and production technology level has been continuously improved, resulting in a continuous increase in production capacity. Company provide first-class machines to to meet the needs of domestic and foreign customers.
R&D CENTER
Company collected first-rate professionals in domestic machine tool trade and established long-term technical cooperative relations with other famous machine manufactures. Meanwhile, companmy pays more attention to introducing advanced foreign technology, and makes great efforts to achieve technical renovation and develop market oriented highly sophisticated products.
Company provide comprehensive cnc machines and manual machines to global customers.
Whether you are an end user, a dealer, or a machining factory, you can send your technical requirements, specifications, drawings, and we will provide the most and we will provide the most suitable machine or a comprehensive processing line solution.

After Sales Service
SERVICE SUPPORT
From the moment you become part of the DECHANG, we are fully dedicated to guiding you, answering your questions and supporting your business. You can rest assured that with DECHANG, you always have a trusted partner to guide you every step of the way. See how our Technical Support services can answer your questions and help you solve your most pressing issues.

1.Warranty

The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual.
2.Quick Response

Our top-notch, expert technical support specialists are there for you seven days a week, 24 hours a day, so you can always count on us to provide help when you need it most.
3.Online Technical Support

On the Whatsapp or Wechat, our technician and sales will deliver solution by taking video and words instructions.
4.Overseas Commissioning and Installation
This is a paid service. If an engineer is required for overseas installation and debugging, please contact the salesperson to obtain the cost

FAQ
1: Where is your company A: Our company is located in Tengzhou City, Shandong Province.2: What about your warranty?A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free3: How do you offer after-sale service?A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems4. What is your standard package? A: Our package is export standard plywood case with pallet.5: What's the Payment Terms? A: T/T, 30% initial payment when order, 70% balance payment before shipment; 6: What's the MOQ? A: 1 set.

---
