100m3/H Low Cost Mobile Cement Concrete Batching Plants China Factory Price

Product Description

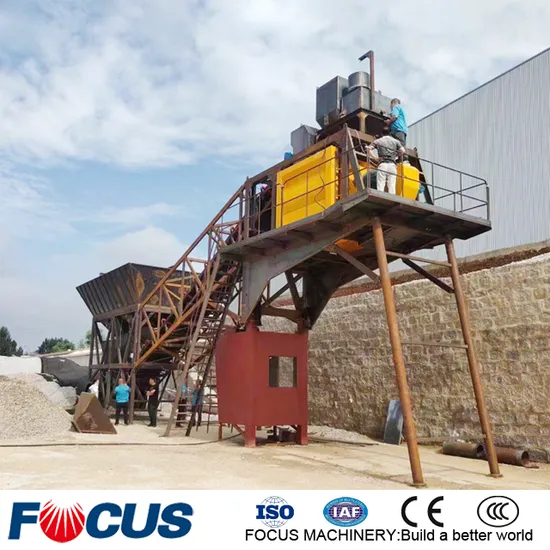

100m3/h Low Cost Mobile Cement Concrete Batching Plants China Factory Price
YHZS series mobile concrete batching plants are widely used in various kinds of large and medium scale prefabricated factory, construction site, road, bridge, airport, tunnel and many other projects. It is also suitable for water conservancy, the electric power, the railroad, the road, the harbor-wharf and so on.
This series of mixing plant adopts the semi-pulling structure with running system and standard coupling pin included. It is a new type of movable cement mixing plant which can be dragged by a tractor to transferring work-site easily and quickly.
Without foundation and commissioning enables convenient movement and quick installation.
Installation Video of Mobile Concrete Batching Plant:
micfocus.en.made-in-china.com
Advantages of FOCUS Mobile Concrete Batching Plant:
1.Complete mobile unit, easily transported
2.Reliable and consist mixing performance,precise dosing...
3.High quality, good after-sale service
Sizes of Mobile Concrete Batching Plant:
YHZS25(25cbm/h) mini small mobile concrete batching plant,
YHZS35(35cbm/h) mini small mobile concrete batching plant,
YHZS50/60(50-60cbm/h) small mobile concrete batching plant,
YHZS75(75cbm/h) small mobile concrete batching plant
Why would our clients choose FOCUS mobile concrete batching plant?
1.FOCUS MACHINERY boasts an award-wining small mobile concrete batching plant product range with capacity from 25cbm to 75cbm hourly.
2.This series of small mobile concrete batching plant adopts semi-pulling structure with running system and equipped with standard coupling pin, hence can be dragged by a tractor at the maximum speed of 40km/h.
3.As uniquely and compactly designed it is, this small mobile concrete batching plant assembles whole functions of accurate material weighing, efficient aggregate conveying, homogeneous mixing, computer auto-controlling and trailing.
The mobile concrete batching plant is the ideal concrete plant for projects that require frequent removal from one site to another.
FOCUS Mobile Concrete Batching Plant Technical Parameters:

Model	YHZS100
Output capacity	100³/h
Overall power	140kw
Discharge height	3800mm
Max. hauling speed	40km/h
Warranty	13months after commissioning
After-sale service	Guidance on erecting, commissioning and operator training, 24/7 technical assistance afterwards
Concrete mixer	JS2000
Mixing circle	60s
Discharge volume	2000L
Max. aggregate dia.	80mm
Aggregate batcher	PLD3200
Storage hopper	2, 3 or 4 sorts
Weighing hopper	3200L
Aggregate weighing precision	±2%
Aggregate feeder	Belt conveyor
Cement	±1%
Water	±1%
Additive	±1%
Control system	Auto computer control, 1 set
PLC brand	SIMENS/OMRON
Electrical components	Relays, contactors, etc. SCHNEIDER make

What are the main features of FOCUS mobile concrete batching plant?
1. It is composed of the systems of material supply, weighing, mixing and electric control;
2. Its discharge height is 3.8m, and it can mix various types of concrete;
3. With the loader to feed material, it can store four types of aggregates at the same time and also with two cement silos and their respective screw conveyor;
4. With electronic scales to measure and the mixing host is twin-horizontal-axis type;
Electrical system is equipped with IPC, printer and so on to realize the centralized control and overall management;
5. With the functions of real-time display, information storage and automatically equalizing the fall during the production process;
It can be controlled by computer and manually, and then can be easily converted through the switch;
6. The modular design is convenient for the containerized transport;
With the optimized design of the concrete batch plant, it can be overall transferred by the towing vehicle.
Thanks for visiting, by the time you are paying attention to us, our mobile concrete batching plants are being delivered /distributed to the world everyday - it'll be such a great honor if you can join us.
For more information please visit us @ micfocus.en.made-in-china.com

---
