Fully Automatic Cake Dessert Snack Boxes Trays Thermoforming Machine for Take Away

Product Description

Fully Automatic Cake Dessert Snack Boxes Trays Thermoforming Machine for Take Awayv Product Description

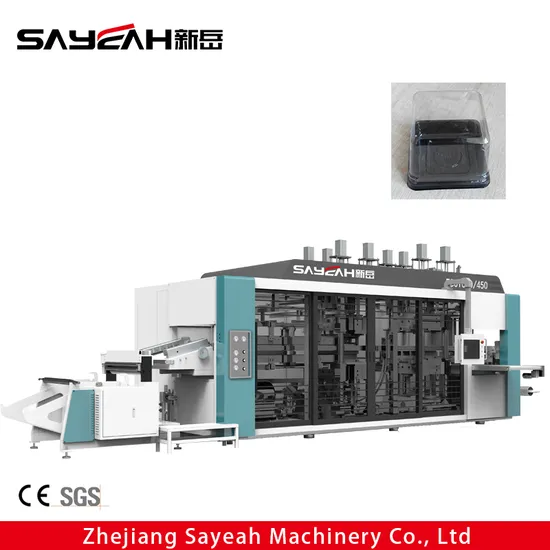

The model of FSCT-680/450 thermoforming machine is our lastest developed products, it combines forming, punching, cutting and stacking in one process.This machine is specialized for forming PP, PS, HIPS, PVC, PET,OPS, EPS, C-PET, PLA, C-PLA, ABS or other materials sheet that can be widely used to produce all kinds of food and non-food packaging products like plastic trays, containers, boxes, lids and so on. Features
1. The forming station has servo motor stretching function, which greatly reduces the long-term mold cost
2. Materials with strong shrinkage can adopt the single station in-mold-forming-cutting function to 100% ensure the edge cutting accuracy
3. High precision forming and cutting technology to achieve the perfect forming and cutting performance of high-speed control and low wear
4. Various styles of automatic stacking technology can be selected to meet your further production needs
5. High cost performance, low failure rate, abnormal alarm response mode, reducing the time cost of troubleshooting
6. Remote maintenance, instant judgment of obstacle messages, rapid correction and repair of problems
7. Under any forming scheme, the clamping frame and plug assist function can be used alone or at the same time, greatly simplify the mold structure
8.Integrated design of electric cabinet to simplify machine assembly and wiring installation process
Product Parameters

Model	FSCT680/450-2	-3	-4
Power	110kw	120kw	130kw
Dimension	8800x2900x2950mm	9500x2900x2950mm	10500x2900x2950mm
Weight	8T	13T	17T
Max Forming Area	680x450mm
Max Forming Depth and Height	140/140mm
Max Sheet Width	720mm

Max Sheet Roll Diameter	1100mm 1T
Sheet Thickness	0.15-2mm

Details

Main Electrical Components
Industrial control system	DELTA TAIWAN / Inovance Shenzheng
PLC	DELTA TAIWAN / Inovance Shenzheng
Touch screen interface	DELTA TAIWAN / Inovance Shenzheng
Feeding servo-motor and drive	DELTA TAIWAN / Inovance Shenzheng
Stacking servo-motor and drive	DELTA TAIWAN / Inovance Shenzheng
Forming servo-motor and drive	DELTA TAIWAN / Inovance Shenzheng
Cutting servo-motor and drive	DELTA TAIWAN / Inovance Shenzheng
Vacuum pump	RUFUS,Jiangsu
Infrared ceramic heater	Tianbao, CHINA (3 years Warranty)
Solid state relay	SHANGHAI, AOYI
Pneumatic components	MAC,USA/SMC, Japan/ Germany

According customers' requirements, there also Lenze system for choosing Our Advantages
