Product Description
Product Description
Usage Overview

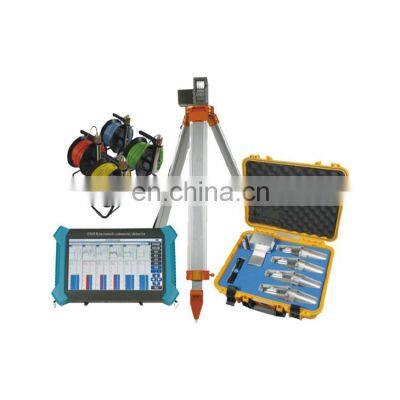

U950/U960Non-metallic ultrasonic detector(multi-tube measuring pile)Ultrasonic transmission method for pile integrity testing,
Structural concrete compressive strength, crack depth, crack width and defect detection; Diaphragm wall integrity testing, which
integrates five functions of pile testing, ultrasonic rebound comprehensive method for strength measurement, defect detection,
crack sounding and width measurement. Geological exploration, rock integrity, weathering evaluation test; mechanical properties of
non-metallic materials such as rock mass and concrete.
Product Description
· Integral design, compact size
· Easy to carry and make work efficient
·
Specification
Product Model
| U950
|
| U960
|
|
Master unit
| Built-in A8 industrial control motherboard
|
| Built-in A8 industrial control motherboard
|
|
Display
| 10.1 inch, high brightness, TFT color LCD capacitive screen
|
| 10.1 inch, high brightness, TFT color LCD capacitive screen
|
|
Operational mode
| Touch screen
|
| Touch screen
|
|
Storge mode
| Built-in Electrionic Hard Disk(＞8GB)+ Large Capacity U Disk
|
| Built-in Electrionic Hard Disk(＞8GB)+ Large Capacity U Disk
|
|
Acquisition mode
| Synchronized continuous rapid mining
|
| Synchronized continuous rapid mining
|
|
Number of channels
| 3 Channels Spontaneous Receiving
|
| 4 Channels Spontaneous Receivingannels
|
|
One-time section number
| 3
|
| 6
|
|
Trigger mode
| Signal triggering
|
| Signal triggering
|
|
Test method
| Plainning Re-testing Encryption. Oblique Survey
|
| Plainning Re-testing Encryption. Oblique Survey
|
|
Data transmission mode
| Wireless Cloud Transport(Options)
|
| Wireless Cloud Transport(Options)
|
|
Acoustic Time Accuracy(μs)
| 0.05
|
| 0.05
|
|
Sampling period(mμs)
| 0.05-409.6 Multistage Options
|
| 0.05-409.6 Multistage Options
|
|
Acoustic time range(mμs)
| ±1677700
|
| ±1677700
|
|
Dynamic range(dB)
| 146
|
| 146
|
|
Width measurement function
| Measuring range: 0~10mm; Measuring accuracy: 0.01mm
|
| Measuring range: 0~10mm; Measuring accuracy: 0.01mm
|
|
Bandwidth(kHZ)
| 1~500
|
| 1~500
|
|
Receiving Sensitivity(UV)
| Less than 10
|
| Less than 10
|
|
Gain Accuracy(dB)
| 0.5
|
| 0.5
|
|
Emission Voltage(V)
| 65, 250, 500 and 1000 gear adjustable
|
| 65, 250, 500 and 1000 gear adjustable
|
|
Communication interface
| USB, Bluetooth, Wifi
|
| USB, Bluetooth, Wifi
|
|
Working hours
|
more than 8
|
|
more than 8
|
|
Powder supply mode
| Built-in lithium battery External 220V~16V AC/DC
|
| Built-in lithium battery External 220V~16V AC/DC
|
|
Working environment
| -10~40℃ Humidty (RH) ＜90%
|
| -10~40℃ Humidty (RH) ＜90%
|
|
Host size(mm)
| 300x200x55
|
| 300x200x55
|
|
Our Advantages
Installation and training · If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your workers/technician face to face.
· Without visiting, we will send you user manual and video to teach you to install and operate.
After Service
· One year guarantee for whole machine.
· 24 hours technical support by email or calling
Any questions, please contact me without hestitation, welcome your inquiry!Price can be negotiated
our customer
Company Profile
` Cangzhou Lovely Group Co.,Ltd. is a professional manufacturer specializing in Testing Equipment,Universal Testing Machine ,Asphalt Tester,Test Moldsand Soil Road Lab Tester,supply verious type of products ..... We assure high quality to you.
· All our products are made in China .Excellent quality with competitive price
Packing & Delivery
· Tianjin port or Qingdao Port deliver by sea and Also can ship by air via express company
FAQ
Q1: Are you a factory or trading company? A: We are a factory specializing in manufacturing all kinds of scaffolding material.
Besides, we could also purchase products as request.
Q2: Where is the loading port?
A: Tianjin port or Qingdao Port.
Q3:How to choose the Transportation Term? A:Usually,we may according to your needs,we may choose the most rasonable freight,then
to select for you.
Q4: What certificates do you have?
A: We have ISO 9001, CE, SGS.
Q5: Do you have an OEM service?
A: Yes. We can provide OEM services according to your requirements.
Q6: What are the payment terms?
A: T/T payment is preferred and other could be accepted, such as L/C, D/P, Western Union, PayPal etc. It is negotiable.
