CNC Vertical Milling machine Model: VMC500

Product Description

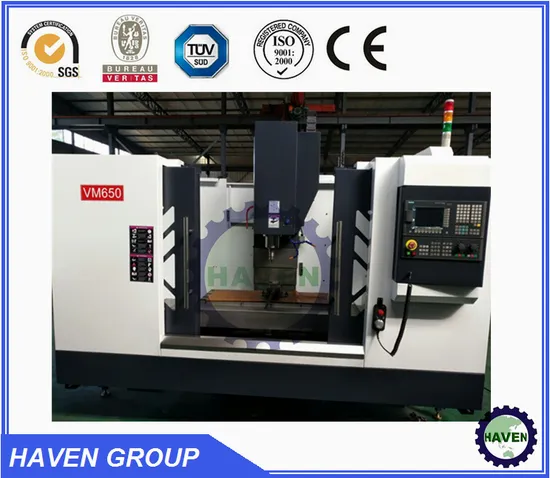

CNC Machine Vertical Machine Center Vmc500/Vmc530/Vmc650
Product Description
Use strong rigid casting steel. X/Y/Z axes are supplied with rectangular guide ways by plastic sticker, medium frequency quenching and precisely scraping.
Spindle from Taiwan with high speed and precision.
Imported bearing with high precision
Coolant system equipped with pump of large flow and high lift pump to insure enough cooling under high-speed cutting.

ITEM	VMC500	VMC530	VMC650
X-Axis travel	500mm	500mm	650mm
Y-Axis travel	350mm	320mm	500mm
Z-Axis travel	400mm	375mm	500mm
Distance from Spindle nose to worktable surface	100-500mm	25-425mm	150-650mm
Distance from spindle centre to surface of column RAM	360mm	345mm	550mm
T slot (width×num.)	14mm×3	16mm×3	18mm×3
Worktable size	600×300mm	600×300mm	450×900mm
Max.loading of worktable	200Kg	120Kg	600Kg
Power of spindle motor	3.7/5.5KW	2.2/3.7KW	5.5/7.5KW
Spindle speed	6000-1000rpm	6000/(or 8000/12000)rpm	6000-8000rpm
Spindle taper	BT30	BT30	BT40
Spindle bearing	P4	P4	P4
Rapid traverse speed of 3 axes	X /Y 18m/min	X /Y 15m/min	X /Y 18m/min
	Z 15m/min	Z 15m/min	Z 15m/min
Cutting feed rate	1-5000mm/min	0-4000mm/min	1-5000mm/min
Min.set unit & moving unit	0.001mm	0.001mm	0.001mm
Pitch of X/Y axes	6mm	6mm	6mm
Pitch of Z axis	6mm	6mm	6mm
Positioning accuracy (300mm)	±0.003	±0.008	±0.005
Repeatability accuracy (300mm)	±0.002	±0.005	±0.003
Changing way of tools	Spindle	Cloak'type	Spindle floating/manipulator
Tool magazine	12	12	20/24
Tool spec. max.dia. (neighboring Tool)×weight×length	φ69mm×2.3Kg×360	φ60mm×3.5Kg×175	φ80mm×7Kg×300
Tool changing time	6S	6S	7/3.5S
Machine weight	2500kg	1800kg	5500kg
Air pressure	0.6MPa	0.6MPa	0.6MPa
Power of cooling pump for cutting	370W	370W	370W
Overall size	2000×1750×2100mm	1700×1764×1708mm	2805×2300×2600mm
Control system	HCNC 21M,MITSUBISHI FANUC SYSTEM	GSK system(or Taiwan Syntec system)	Mitsubishi system

WHY CHOOSE HAVEN BRAND MACHINE:
1) Hihg quality with competitive price
2) 15 years export experience
3) CE,SGS, ISO Certificated
4) OEM SERVICE AVAILABLE
5) 24 HOURS' ONLINE SERVICE (MSN,SKYPE)
6) 14 months quality warranty (after B/L date)
7) Over sea engineers available for problem shooting

Our Target: BRAND HAVEN
High quality;
Assured Delivery;
Vigorous innovation;
Efficient Cooperation;
Noblesse Oblige

---
