Product Description
Product Description

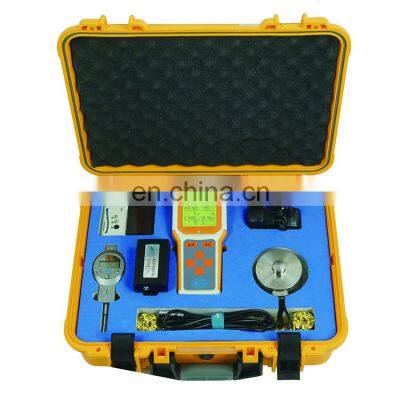

Product DescriptionEv2 Plate bearing test set is used to measure the settlement5 value of Subgrade under static load, so as to evaluate the bearing capacity and deformation of subgrade. It is suitable for monitoring and monitoring the construction quality of railway, highway, airport, urban traffic, port, wharf and industrial and civil building subjected to static load. After the first loading and unloading of the ground by the circular bearing plate and loading device, the second loading is carrier out. The values of deformation modulus Ev2 and Ev2/Ev1 are calculated by the measured stress-under the bearing plate and the corresponding central settlement value S of the bearing plate.ModelEV2UsageDeformation Testing MachineRate of workElectronicApplicationEffective depthNormal condition 500mmWorking ambientWorking ambient -10℃~40℃ Humidity <90%HRElecteic sedimentation meterSizeScreen size:3inch Overall size:100×205×40mm Net weight:0.8kgStorage amount400 groups testing curvePowder supplyLithium battery, 18hrs continuous work timeDisplay methodChinese/EnglishPrinterConnection methodWireless Bluetooth printerTransducerPressure transducer100kNDisplacement, transducer25mm, 0.01mmMeasure deviceBearing plateDiameter:300mmThickness:25mmWeight:17.5kgLoading deviceHydraulic pump:100kN high pressure tube:2m Oil cylinder extensible rod:1*90mm,1*120mm,1*160mm,1*160mm,2*60mmSedimentation measure deviceThree point frame, flexible and rotary lever arm, adjustable base Dimension:2320*570*420mmWeight:12.5kgFEATURESFEATURES1. Imported cylinders and manual pumps are adopted, with outstanding performance of pressure control and voltage stabilization.2.The displacement acquisition device adopts heavy profile and three-point support design, which has strong seismic and windproof capability and ensures accurate data.3.LCD display in English and Chinese, with corresponding hints in Chinese and English under different interfaces, and with backlight, has better visibility in various environments;4.Automatically calculate Ev1, Ev2 and Ev2/Ev1 values and display curves.5.Hand-held mainframe with Bluetooth micro printer can print directly on the spot to ensure the accuracy and objectivity of the test results.6.USB transmission interface, easy to connect with the computer.Company informationCangzhou Lovely Technology Co., Ltd is specialized in Nondestructive Test Instrument and Material testing machine over 10 years,Without advanced technologies and best customer service, Our product has exported to more than 100 countries and regions,which win favorable comments from customers worldwide.Cangzhou Lovely Group Co.,Ltd. insisted on "Integrity-based, guests supremacy". Welcome customers from all over the world to visit us for business negotiation!The Foreign Trade Department of Cangzhou Lovely Group Co.,Ltd. was established.According to customers' requirements, there has the machine---CZY5 Rebar Weighing and Length Measuring InstrumentIndependent research and development and production of GW50 Automatic Rebar Bending Testing Machine.L800 Integrated Floor Thickness Gauge RBL+ Rebar Detector goes public.New product-- U900 Series Non-Metallic Ultrasonic Detector.HYE-2000 Series Microcomputer Servo Compression Testing Machine: Pad adjustment, Manual screw adjustment, Electric screw adjustment.WAW-B Micro Electromechanical Liquid Servo Universal Testing Machine.EV2 Static Deformation ModulusTester; EVD Dynamic Deformation Modulus Tester. ---Patented ProductThe factory was established, begin to produce more than 20 types instrument.Our ServicesPre-sale service* OEM customized service * Equipment installation and calibration * Free technical training for visiting factoriesAfter-sales service* 24-hour Online consulting support. * Training how to instal use the machine. * the professional after-sale service team will provide perfect technical supportPacking & DeliveryWe promise the delivey in time. And we support customize products for customers. Such as the voltage and package etc. All wooden box are suitable for exporting.FAQQ1:Are you a factory or trading company? A:We are a factory specializing in manufacturinf all kinds of tester. Q2:Where is the loading port? A:Qingdao port or tianjin port. Q3:What’s the MOQ of the product? A:Different item has different MOQ.normally one stand is preferred. Q4:What certificates do you have? A:We have ISO 9001. Q5:Do you have an OEM service? A:Yes.We can provide OEM and ODM services as your requirements. Q6:How long is the production cycle after ordering? A:General it is about 7-20 days. Q7:What is the payment method? A:T/T payment is preferred and other payment terms is accepted. Q8: Could you support to customize?A: Yes, we could customize the package and Voltage as request.Hot Sales
>>
