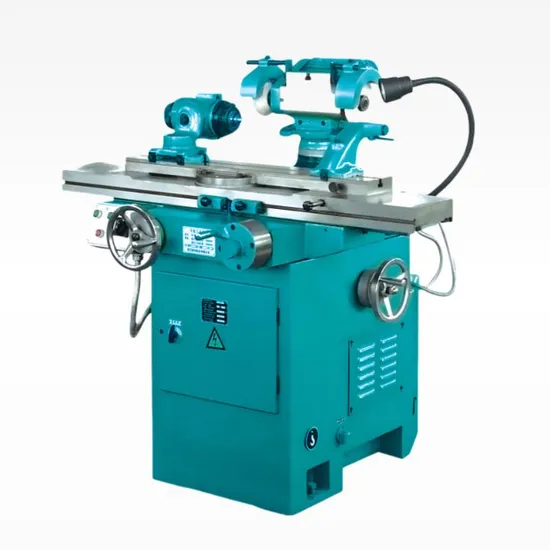

Professional Manufacture Grinding Machine for Milling Head Promotion Price

Product Description

Features
The series machine are specially suitable for sharpening tools in HSS,tungslen carbide and other materils.Such as various kinds of milling cutters,reamers, lather tools,planing tools,screwtap and gear-slotting cutter.
By using additional attachments to grind external cylindrical sucface and taper workpiece, flat surface and slot.
A ball-guide leadscrew and steel-lined guideways are adopted for easy and convenient operation.
The machine works well in cutter making factory, toolshop, repairshop and small and medium scale machine plants. The special accessories with the machine provide to the users for easy operation
Specification Parameter

Item	Unit	MG6025K	2M9125C	MG6025K
Max.Swing diameter overtable	mm	250	250	250
Distance between front and rear centers	mm	650	630	630
Table longitudinal traverse	mm	400	400	400
Working surface of table	mm	940*135	940*135	940*135
Max.swivel of wheelhead in horizontal plane	°	360	360	360
Max.swivel of wheelhead in vertical plane	°	±15	±15	±15
Vertical traverse of wheelhead	mm	230	210	230
Cross traverse of table	mm	230	210	230
Grinding spindle speed	r/min	7600	3000/5600	7600
Max.swivel of workhead in horizontal plane	°	360	360	360
Drive motor power	kw	0.45/0.6	1.1	0.45/0.6
Net weight	kg	1000	1150	1000
Machine overall dimension	mm	1350/1275/1250	1350/1340/1300	1350/1270/1250
