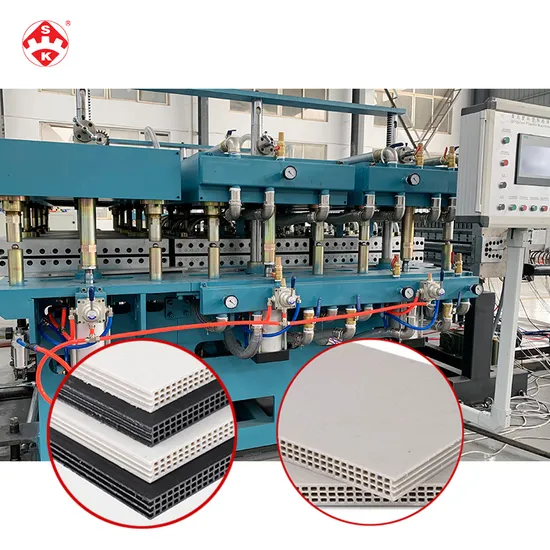

Concrete Plastic Plywood Sheet PP Hollow Plastic Bofu Block Construction Formwork Tepmplate Corrugated Board Making Extruder Machine

Product Description

Concrete Plastic Plywood Sheet PP Hollow Plastic Bofu Block Construction Formwork Tepmplate Corrugated board Making Extruder Machine
Hollow Plastic Building Formwork is a kind of energy-saving an environment protecting product. The material is PP plastic combined with macromolecule nano-technology. It is a new product after wood formwork, composite steel formwork, bamboo wood bonding formwork and all-steel large formwork. It is energy-saving and environment protecting and can completely replace the traditional steel formwork, wood formwork, sqaure wood and further more its amortization cost is very low.
Width: 819-1220mm, Thickness: 12mm, 15mm,18mm
Formwork/Tempalte Advantages:
No.1. Smooth and clean.The splicing of the formwork is strict and smooth, and the surface degree and finish of the concrete structure after demoulding exceed the technical requirements of the existing clear water formwork.
No.2. Portable and easy to install.Light weight, strong process adaptability, can saw, planer, drill, nail, can be composed of any geometric shape, to meet the needs of various shapes of building die.
No.3. Simple stripping.Concrete does not stick to the surface, no need of demoulding agent, easy demoulding, easy to remove ash.
No.4. Stable weather resistance.High mechanical strength, in - 20 ºC to + 60 ºC temperature conditions, contractive, not wet bilge, no crack, deformation, stable size, alkali resistant anticorrosive, waterproof, flame retardant from rat pest control.
No.5. Beneficial to maintenance.Templates do not absorb water, no special maintenance or storage.
No.6. High variability.Types, shapes and specifications can be customized according to the requirements of construction projects.
No.7.Reduce costs.More times of turnover, plane mold turnover more than 50 times, column and beam mold not less than 40 times, low cost.
No.8. Energy saving and environmental protection.Scrap and waste templates can be recycled, zero waste discharge.

Machine List
No.	Name	Qty.	Remark
1	Screw loader for SJ120/35 extruder	1
2	Vacuum Loader for SJ75/35	1
3	SJ 120/35 single screw extruder	1	For the middle layer
4	SJ 75/35 single screw extruder	1	For the surface layer
5	Screen Changer1	1	For SJ120/35 Extruder
6	Screen Changer2	1	For SJ75/35 Extruder
7	Metering Pump1	1	For SJ120/35 Extruder
8	Metering Pump2	1	For SJ75/35 Extruder
9	Distributor for 3 Layers	1
10	1000mm Extrusion Mould	1
11	Vacuum Calibration Table	1	3 Groups Calibration Mould
12	Vacuum System	1
13	Cooling Bracket (Forward)	1	3000mm
14	Haul-off Unit (Forward)	1	High Quality Rubber Roller
15	Cooling Bracket (Backward)	1	3000mm
16	Haul-off Unit (Backward)	1	High Quality Rubber Roller
17	Cutter	1
18	Staker	1

Name: SJ120/35 Single screw extruder
Technical parameters:
a.Main motor : Siemens Brand.
b.Siemens PLC control system
c.Screw barrel: 38CrMoAl, hardness Hv950 or more , high-efficiency and long service life.
d.Scew structure : Great plasticzing effect , energe saved 20%
Name: Extrusion mould
Technical parameters:
a.Unique die structure for hollow products using core molding optimized flow path through computer simulation to ensure uniform and stable flow,
b.Independent air flow control system to quickly balance the airflow in a short time to obtain a stable production .
c.Fine polishing of the cavity , lip and flowing channel.
Name: Forming machine
Technical parameters:
a.The module is a one-time die-casting molding ,
b.Module material: LY12 high quality aluminum
c.Advanced machine center, one-time clamping of the module,
d.Four cylinder lift more stable.
Name:Haul-off Roller
Technical parameters:
a.High quality rubber on the surface
b.Surface shore hardness 65-70,
c.Roller thicknee is more than 18mm
d.Increase the diameter of shaft heads and bearings ensure stable operation of thick board.
e.Double-row chain drive,forward and backward roller transmission coefficient is consistent .

cross moving motor power cutting motor cleaner	2.2kw 3Kw 1 set
longitudinal move	cylinder drive
length of transmission unit	3m
motor power	0.75kw

Why Choose Us?
Strong Strenth
Founded in 2002.
20000 square meters factory
Over 50 workers

Rich Experience
Over 500 lines exported
Sell to over 20 countries
Cover all of extrusion products

Professional Support
Machine & Specification Making
Details infos classfication
Picture & videos sharing
Formula & operation support
Good After Service
Full set of drawings
Full set of operation manual
Free running test
Free online technical support

---
