Hot Sale 50-100mm Manual Sumore Vertical Drill Press Floor Machines Drilling Machine

Product Description

Product Description

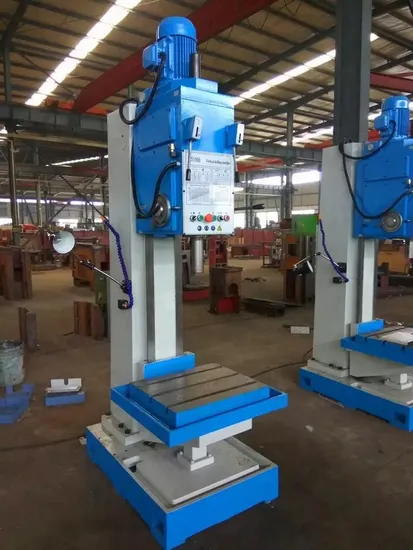

SP5163A Drill Press Drilling Machine 63mm Bench Vertical Drill Press Machine With Factory Price SUMORE
1. Z5163A square column type vertical drilling universal machine tool, which can be used for drilling, reaming, countersinking, boring, tapping, etc. The automatic reversal of spindle tapping and inching feed are very convenient for blind holes and fixed depth holes.
2. The machine tool has high efficiency, good rigidity, high accuracy, low noise, wide speed change range, centralized operation, novel appearance and convenient use and maintenance.
3. Multi axis machine can realize simultaneous processing of multiple holes and greatly improve processing efficiency.
Product Parameters

Main technical parameters	SP5163A
Maximum borehole diameter	Ф63mm
Main motor power	5.5kw
Mores	NT5
Feed range	0.056-1.8mmr(6steps)
Spindle stroke	250mm
Spindle box stroke (manual)	200mm
Spindle Drilling Speed Series	9
Main shaft speed	40-780r/min(9steps)
Workbench area	650x550mm
Vertical travel of worktable	300mm
Distance from spindle centerline to track	375
Distance from end face of spindle to worktable	400-900mm
Exterior dimensions	1200*800*2400
Machine tool weight	2500kg
Machine tool weight kg	1250
Outline dimension mm	1050*710*2540

As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!

---
