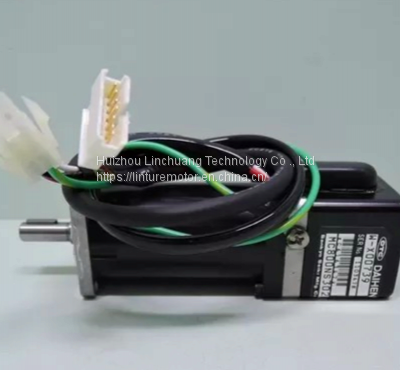

Nidec Sankyo OTC DAIHEN W-X00739 MC800NS302KSN10 AC Servo Control

Product Details

Product Description

Product Description
Detailed Product Description
Category:Model:Rated Power:Series:MOQ:Brand:High Light:

Industiral Servo Motor	MC800NS302KSN10
80W	MC800NS Series
1	Nidec Sankyo (Japan)
ewing machine servo motor,ac servo motor

Nidec Sankyo Industrial Servo Motor's Use Applications
Embroidery Machine,Textile Machine,Packaging Machine etc
Removal Robot
Conveyer Machine
Processing Machine
Features
Suitable for applications with high speed rotations.Can be used for most applications.
Suitable for applications with low mechanical rigidity such as drive belt machinery.
Types of Sankyo Industrial AC Servo Motor

Inertia	Low Inertia Middle Inertia High Inertia
Flange Size	40 mm x 40 mm 60 mm x 60 mm 80 mm x 80 mm 130 mm x 130 mm
Rotational Speed	Rated Motor Speed / Max. [r/min] 2,000 / 3,000 [r/min] 3,000 / 6,000 [r/min]
IP Code	IP65 IP67

Installing Precautions
Never remove the encoder or dismantle the motor body.
The motor shaft has anti-rust oil applied at the shipment. Please wipe off the oil before installing the motor. Make sure to perform centering (alignment) carefully and properly.
Operating the motor without sufficient alignments might cause vibrations or a shorter service life of the motor.
Installation Orientations and Oil Seals
The motor can be installed either vertically or horizontally. Please observe the following precautions.
Horizontal installation: Face the cable pull unit down in order to protect the motor against oil, water and dust.
Vertical installation : For a motor combined with a decelerator being on top of the motor shaft, use an oil sealed motor to prevent the decelerator oil from seeping into the motor.

---
