Product Description
Product Description

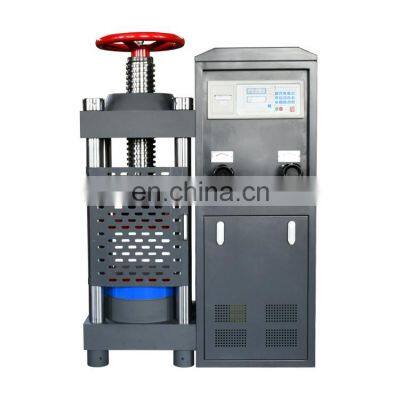

DYE-2000 Digital Compression Testing MachineProduct DetailsProduct Application 1. DYE-2000 electro-hydraulic pressure testing machine is driven by hydraulic power source, and intelligent measurement and control instrument is used to collect and process test data. It is composed of four parts: test host, oil source (hydraulic power source), measurement and control system and test apparatus. The maximum test force is 1000kN, and the accuracy level of the testing machine is better than level 1. 2. DYE-2000 electro-hydraulic pressure testing machine can meet the national standard test requirements for brick, concrete, cement and other materials. Manual loading and digital display of loading force value and loading speed value. 3. The testing machine is the main engine oil source integrated structure;It is suitable for compressive test of cement and concrete. With appropriate fixture and measuring device, it can meet splitting test, bending test and static compressive elastic modulus test of concrete.ModelDYE-2000ANameManual screw digital display compression testing machineMaximum test force (KN)2000Test accuracyLevel 1Space adjustment methodManual screw adjustmentPiston stroke0-50Press space(mm)320Sensor typeOil pressureUpper platen size (mm)240x240Lower platen size (mm)240x240Motor powder (KW)0.75Mainframe dimensions(mm)900x400x1250Machine weight(kg)600Detailed ImagesProtective net is more safeTest results are automatic processing, storing and printing.Built in radial piston oil pump,stable output and low noiseCompany informationCangzhou Lovely Technology Co., Ltd is specialized in Nondestructive Test Instrument and Material testing machine over 10 years, Without advanced technologies and best customer service, Our product has exported to more than 100 countries and regions,which winfavorable comments from customers worldwide.Cangzhou Lovely Technology Co.,Ltd. insisted on "Integrity-based, guests supremacy". Welcome customers from all over the world to visit us for business negotiation!The Foreign Trade Department of Cangzhou Lovely Group Co.,Ltd. was established.According to customers' requirements, there has the machine---CZY5 Rebar Weighing and Length Measuring Instrument Independent research and development and production of GW50 Automatic Rebar Bending Testing Machine.L800 Integrated Floor Thickness Gauge RBL+ Rebar Detector goes public.New product-- U900 Series Non-Metallic Ultrasonic Detector.HYE-2000 Series Microcomputer Servo Compression Testing Machine: Pad adjustment, Manual screw adjustment, Electric screw adjustment. WAW-B Micro Electromechanical Liquid Servo Universal Testing Machine.EV2 Static Deformation ModulusTester; EVD Dynamic Deformation Modulus Tester. ---Patented ProductThe factory was established, begin to produce more than 20 types instrument.Our ServicesPre-sale service* OEM customized service* Equipment installation and calibration* Free technical training for visiting factoriesAfter-sales service* 24-hour Online consulting support.* Training how to instal use the machine. * the professional after-sale service team will provide perfect technical supportPacking & DeliveryWe promise the delivey in time. And we support customize products for customers. Such as the voltage and package etc. All wooden box are suitable for exporting. FAQQ1:Are you a factory or trading company? A:We are a factory specializing in manufacturinf all kinds of tester. Q2:Where is the loading port? A:Qingdao port or tianjin port. Q3:What’s the MOQ of the product? A:Different item has different MOQ.normally one stand is preferred. Q4:What certificates do you have? A:We have ISO 9001. Q5:Do you have an OEM service? A:Yes.We can provide OEM and ODM services as your requirements. Q6:How long is the production cycle after ordering? A:General it is about 7-20 days. Q7:What is the payment method? A:T/T payment is preferred and other payment terms is accepted.Q8: Could you support to customize?A: Yes, we could customize the package and Voltage as request.
>>
