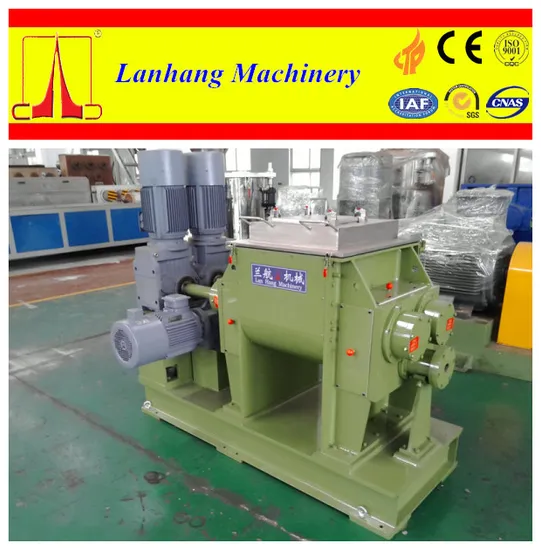

Reliable Shaft Seal Silicon Rubber Kneader

Product Description

Application of Rubber Kneader: Rubber solutions Putties Ceramic and catalytic converter compounds Activated carbon Carbon electrodes Hot-melt and other adhensive types Insulating compounds Sealants Printing inks Silicone rubber Pharmaceutical compounds Chocolate Chewing gum Chemical masterbatches Historically Universal Mixers have proven to be reliable mahines for the mixing and kneading of low-to high-viscosity products in many industries. Their working principle is based on two tangential counterrotating blades creating shear within the treated product in combination with the wall of the trough. Variation of the revs per minute, friction and position of the blades results in extremely effective mixing and kneading of th material. The versatility of the machine enables simultaneous processes within a mixing cycle like moistening, plasticising, dispersing, homogenising, melting, cooling, degassing, evaporation, dissolving and reacting.
Advantages of sigma kneader/mixer:
Optional mono-screw extruder models available Adjustable blade arm rotation Quick disassembly of the through-ends opposite the drive and blades for easy cleaning. Stainless steel construction. Simple installation - only a single power cable. Stainless steel with sight-glass cover for product viewing during mixing. Discharging: tilting type or screw type discharging. Sizes/volume could be customized. Why Choose Lanhang:
1. Since1992, with more than 20 years' professional experience
2. Overseas service center available (in Europe, Japan, Dubai, etc.)
3. International CE, SGS, IAF, CNAS certification
4. National high-tech enterprise / products
5. Various National Patent for Inventions Letters for rubber & plastic machinery
6. ISO9001:2008 management

Main Parameters: Volume could be customized.

Model	NH-5000	NH-3000	NH-2000	NH-1500	NH-500
Capacity (L)	5000	3000	2000	1500	500
Filling Coefficient	0.6
Agitator Blade	Sigma Z Blade Rotor
Rotating Speed	N1 35r/min N2 21r/min			N1 40r/min N2 21r/min
Jacket Pressure (Mpa)	≤ 0.3
Chamber Pressure (Mpa)	≤ -0.094
Cooling Type	Water Cooling
Heating Methods	Jacket Steam / Oil / Electricity Heating
Discharging Types	Hydraulic Tilting / Drop Door / Screw Extruding
Unique Function	Vacuum and Nitrogen-filled Kneading Available
Power Supply	AC 380V 50HZ 3P (customized available)
Motor Power (Kw)	300	220	160	132	90
Overall Dimension (mm)	3400x2400x1900	3400x2200x1800	3280x2100x1700	3200x2000x1650	3000x1980x1600
Weight (T)	25	15	11	9	6

---
