Coaxial Cable LMR100 with SMA / N Plug for Motor Vechicle / GPS Antenna

Product Description

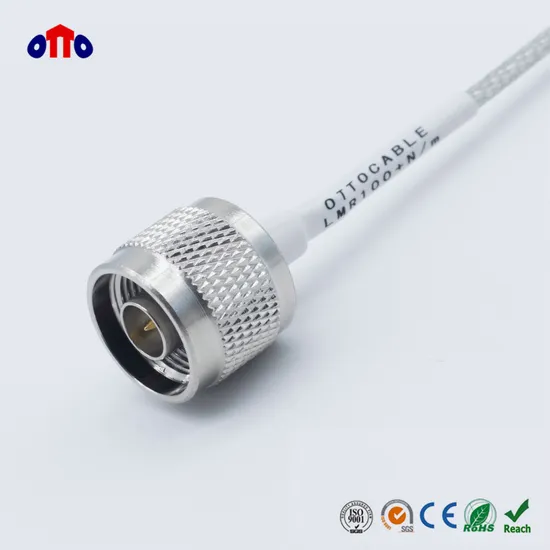

50Ohm Coax Jumper Cable LMR100 with SMA-N Connector
50Ohm Coax Jumper Cable LMR100 with SMA-N Connector
Application:
•Mobile Antennas
•Wireless Communication Syestems
•WLL, GPS, WLAN,WiMax
• Cellphone Signal Repeaters
• Signal transmission
Features:
• 50 Ohm
• Low Loss RF Cable
• 0 - 6GHz
• Excellent performance at high frequency
• Drop-in replacement for RG316, RG174.
• REACH/RoHS compliant, CE certified.
• OEM/ODM
Assemblies:
• N, TNC, BNC, SMA......
• Customized Cable length / color/ roll size/ packing
• Various colors of Heat shrinkable tube
Construction

Item	Material	Diameter(mm)
Inner Conductor Dielectric First Shield Second Shield Jacket	Bare Copper / Copper Clad Steel Solid PE Aluminum Foil Tinned Copper Wire Braid PVC/PE/LSZH	0.46 1.52 1.65 2.11 2.79

Electrical Characteristics

Impedance (Ω) Capacitance (pF/m) Velocity of Propagation (%) Return Loss Screening Effectiveness(dB) VSWR Installation Temp(ºC) Operating Temp(ºC)

50±3 101.1 66 ≥20 ≥80 ≤1.2 -25 to +70 -25 to +70

Attenuation (@20ºC)

Frequency(MHz)	Max Attenuation(dB/100m)
150 220 450 900 1500 1800 2000 2500	30.0 37.0 53.0 76.0 100.0 110.0 116.0 134.0

---
