4 Axis Aluminium CNC Machining Center for Window Door and Curtain Wall

Product Description

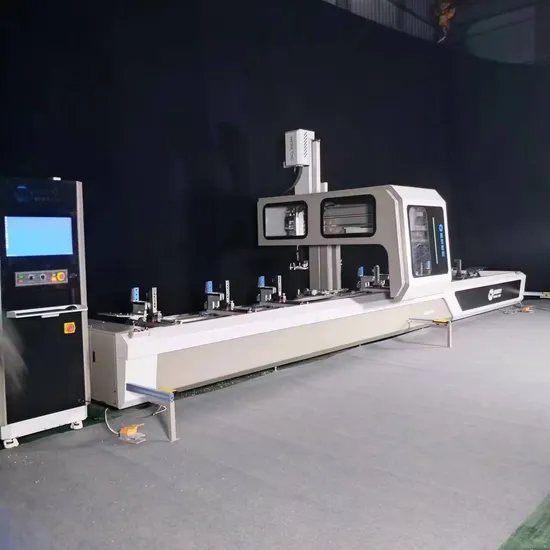

Aluminum 4 Axis CNC Machining Center
WSJ4-CNC-7000
Product Description
1. The machine can realize the clamping of raw materials at one time, and according to the processing needs, it can complete the cutting, milling end face tenon, milling key hole slot, running trough, air pressure balance hole, installation hole and other multi-process processing to meet customers' requirements for doors, windows, curtain walls, and sun rooms. , Personalized customization of industrial aluminum profiles.For a variety of aluminum, copper, PVC, industrial profiles and other complex parts processing.
2. The machine is equipped with an industrial numerical control system, dedicated CAD-CAM editing software for three-dimensional modeling display, automatic tool setting, which can optimize the travel path. It can complete continuous automatic milling of different specifications and sizes of profiles, with powerful functions. CAD drawings can be imported into the system for convenient and simple, and can be equivalent to domestic and foreign doors, windows, and curtain wall system software.
It is suitable for the processing of complex parts such as various aluminum, copper, PVC, industrial profiles, building curtain walls, and sun rooms.
3. The single-arm frame structure with moving beam and moving column is adopted, which makes the operation more stable and improves the processing rigidity of the machine tool.
4. High-quality bus servo motors, ball screws, linear guides and bearings are used to ensure that the equipment has high processing accuracy, high stability and reliability. The feed movement is pre-stretched to ensure the stability of the machining accuracy.
5. Fixture automatic optimization function, automatic avoidance or early warning processing when the clamping position interferes with the processing position.
6. The left and right partitioned layout, with two positioning plates on the left and right, can complete interactive feeding without stopping the machine and improve processing efficiency.
7. This machine adopts high-speed electric spindle imported from Italy, which can complete the processing of any angle on the other three sides except the bottom. Vertical disc type tool magazine (12 positions).
8. The centralized automatic feed lubrication method with quantitative timing ensures the stability of the machine tool accuracy and automatic micro automization cooling.
9. The pneumatic clamping workbench is adopted to increase the loading and unloading speed.
10. The fuselage adopts grating safety protection function to ensure safe operation.

4 Axis CNC Machining Center Parameter
Total power	16kw
Spindle Power	12KW
X-way range	7000mm
Y-way range	1500mm
Z-way range	600mm
Processing size	7000*400*300mm
X-axis servo motor	1.8kw
Y-axis servo motor	0.85kw
Z-axis servo motor	1.3KW (holding brake)
C-axis servo motor	400W
Servo motor of rotary tool magazine	400W
C axis rotation range	±90°
Saw blade	200mm
Spindle speed	24000r/min
Tool storeroom type	Dis type
Tool magazine capacity	12
Tool shank model	ISO-30
Lubricating system	Automatic lubrication system
X-way moving speed	0-55m/min
Y/Z-way moving speed	0~40m/min
Air pressure	0.6~0.8MPa
Overall dimension	8800*2500*2800mm
Weight	4500kg

Detailed Photos
4 Axes Machining Center
Drilling, milling, thread cutting and cutting at angle any from 0° to 180° and high power 9,5kW electrically-driven spindle with HSK-63F tool holder.

Automatic Vice Positioning
The machine software can calculate the correct positioning measure for each vice unit, according to the length of the workpiece and to the type of machining to be performed. The automatic vice positioning system performs the positioning of each vice assembly at the highest speed and with great precision and spares longer time and collision risks, so that the machine can also be easily used by less experienced operators.

Tool Magazine
The tool magazine is large and quick and is installed directly on the machine's carriage. Its lateral position, together with an exclusive housing, guarantees maximum protection of the tool holder cones from swarfs and accidental knocks. The magazine can contain up to 12 (11 + 300 mm blade) tool holders with relevant tools, which can be set at the operator's discretion.

Clamps
Well-dimensioned vice assembly, capable of guaranteeing the correct clamping of even large aluminium profiles. Each vice unit is equipped with a pneumatic table translation device that facilitates workpiece loading and unloading operations and significantly increases the machinable section.

Some holes sample after work

Packaging & Shipping
Take the professional packaging of double-head saw cutting machine as an example:
1. Full film packaging of double-head saw cutting machine;
2. Anti-collision packaging edge;
3. Fumigation-free plywood boxes and pallets with iron strapping.
Company Profile
Shandong Weike CNC Machinery Co., Ltd. is a well-known manufacturer specializing in the research, development, production, and sales of aluminum doors, windows, and curtain wall equipment in China. It's the most large-scale and industrialized production enterprise in the industry.
We have three large production workshops, strong mechanical processing supporting capabilities, a high-quality scientific research team, and a high-tech production team. We have strong research and development strength, a perfect product system, and insist on independent innovation to continuously improve products in scientific and practical ways. The company has several offices in China, forming a one-stop comprehensive service system integrating product development, production, sales, and service.

Certifications
After Sales Service
1. 2-year warranty. Provide a full range of technical support for life

2. From Monday to Sunday, 9 a.m. to 18 p.m.Experienced technician to guarantee lifetime online support (by WhatsApp, WeChat,Email,Facebook,Instagram) in English,Chinese,Hindi,Bengali ,Urdu. So there is no need to worry about technical support due to the time difference.

3. Support local after-sales service. Up to 2024, we have provided on-site services to more than 50 countries and regions: Canada,Mexico, The United States, Ukraine, Russia, Italy, Poland, Spain, Brazil, Indonesia, India, Turkey, Thailand, Vietnam, Australia etc.
Exhibition
FAQ
Q: How do I install and run the machine?
A:Our technician installed the machine before shipping. For some small part installation, we will send a detailed training video and user's manual along with the machine. 95% of customers can learn by themselves.

Q: What can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try to fix the machine by yourself or someone else. We will respond within 24 hours, as quickly as we can, to solve it for you.
Q: What customized services have you provided?
A:WEIKE CNC, we are the true manufacturer; we have our own factory, therefore we could supply full OEM and ODM services.
Q: Are WEIKE CNC machines user-friendly?
A:Yes, our machines are designed with user-friendliness in mind. They come with intuitive software interfaces that are easy to learn and operate. We also provide comprehensive training and technical support to ensure our customers can make the most out of their machines

Q:What after-sales support does WEIKE CNC provide?
A:We understand the importance of reliable after-sales support. We provide comprehensive technical support, including remote assistance, video tutorials, and access to our knowledgeable support team.

---
