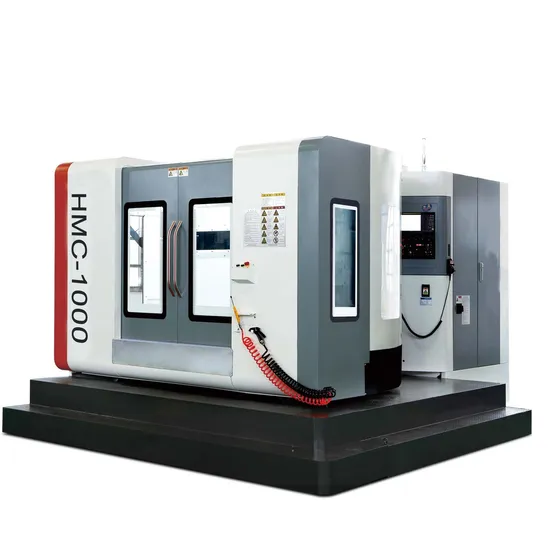

Oturncnc Hmc-1000 Horizontal Machining Center Horizontal CNC Machining Center Hmc Fresadora CNC Milling Machine Horizontal

Product Description

Product Description
Horizontal machining centers are widely used in the processing of high-precision parts, especially suitable for the processing of IT components, auto parts, optical instruments, medical equipment, pneumatic components, aviation and aerospace parts, molds, etc. This machine tool is mainly used for milling, and is suitable for drilling, tapping, reaming, reaming, boring and continuous milling of parts.
Product Parameters

Item		HMC-1000
Worktable	Worktable size	1000×1000mm
	Number of worktable	1
	Worktable indexing	1 °X360
	Worktable transmission ratio	240
	Max. load of worktable	2000kg
	Form of work surface (threaded hole)	24×M16
	Max. workpiece rotation diameter	¢1800mm
3 axis travel	Move the worktable left and right (X direction)	1600mm
	Spindle box moves up and down (Y direction)	1000mm
	The column moves forward and backward (Z direction)	1000mm
Spindle parameter	Spindle speed	5300rpm
	Spindle power	18.5/220Nm
	Spindle taper	BT50
	Distance from spindle centerline to worktable	0~1120mm
	Distance from spindle end face to worktable center	200~1200mm
Tool magazine	Tool capacity BT-50	40 pcs
Tool change time	Standard 40T(Optional:24/48/60)	2.6s
Three-axis linear rail specifications	X-direction, Y-direction, Z-direction heavy-duty 55 roller guide rails	55mm
Three-axis screw specifications	X direction, Y direction, Z direction (diameter × lead)	40×12 Z/50*12
Rapid traverse speed	X direction, Y direction, Z direction	36m/min
	B axis	10r/min
Cutting feed rate	X direction, Y direction, Z direction	1-10000mm/min
Positioning accuracy	X direction, Y direction, Z direction	0.01(Full travel)
	B axis	10 ″
Repeat positioning precision	X direction, Y direction, Z direction	0.008(Full travel)
	B axis	5″
CNC Controller	X direction servo motor	BIF40/2000
	Y direction servo motor (brake alarm)	BIF40/2000
	Z-direction servo motor	BIF40/2000
	B-axis servo motor	BIF22/3000
	Spindle servo motor	BIIP40/6000 SP
Dimensions	length*width*height	4200×5010×3800
Net weight approx.		16000kg

Products Configurations
Company Profile
Quality Control
Our Advantages
FAQ
Q1:How can l choose the most suitable machines ?
Please tell me your specications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you .
Q2: What's your main products of your company?
We specialized in all kinds of machines,such as CNC Lathe Machine ,CNC Milling Machine,CNC Turning Maching,Vertical Machining Center ,Horizontal Machining Center,Lathe Machines,Turning and milling composite processing so on.
Q3: Where is our factory located? How can l visit there?
We have 5 factories located in Guangzhou, Quzhou, Ningbo, and Guangdong.You are warmly welcomed to visit us.
Q4. How do you transport it?
Provide Transportation Solution DDP/CIF/FOB/FCA
Q5: What's the Payment Terms ?
T/T ,30% initial payment when order,70% balance payment before shipment .
06: What's the MoQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.We strongly suggest you to tell us size, material of your workpiece for our evaluation if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
2.lf need ClF Price, please kindly tell us the port of destination.

---
