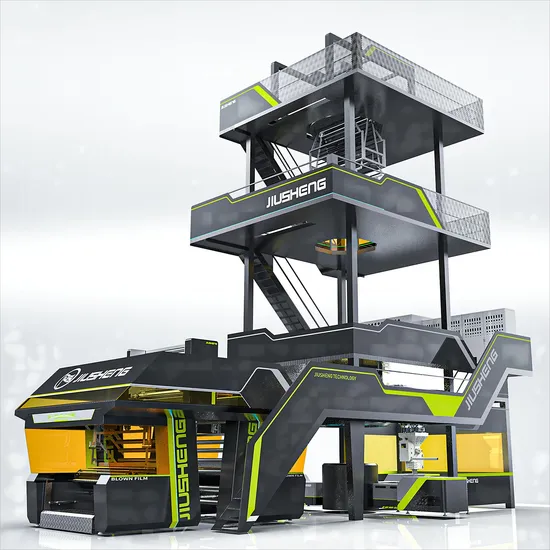

Seven-Layer Plastic Machinery PE Film Blowing Extruder Machine for 1800mm

Product Description

Jiusheng recommends blown film machine
↓ ↓ ↓
main parameter

Model	SJBHM-65/75/65-1800	SJBHM-65/85/65-2000
Suitable material	LDPE/LLDPE/mLLDPE/EVA and Mixing
Film layer	7 layers
Film thickness	0.02 - 0.15mm
Max film width	1600mm	1800mm
Max output	300-400kg/h	400-500kg/h
Screw diameter	φ65/φ75/φ65	φ65/φ85/φ65
Screw L/D ratio	33:1	33:1
Die head diameter	400mm	450mm
Air ring Diameter	1480mm	1480mm
Main motor power	37/55/37kw	37/75/37kw
IBC system	P+F probe and IBC system
EPC system	EPC auto edge position control system
Screen changer	Non-disassemble manual screen changer
Winding method	Automatic back to back surface friction winder
Tension control system	Auto
Overall Dimension (L*W*H)	12500*7000*11500mm	12500*7000*12500mm

Process Flow Diagram
Automatic ABC(IBC)3-Layers Co-extrusion Center Gap Winding System Film Blowing machine
Jiusheng Product Album
Our Equipment in Factory
The Patent Certificate We Obtained
Main Product Series
1.barrier film

2.composite base film


3.protective film


4.self-adhesive film

Production Site

Spare Parts and Service


Q&A
Q1: How about after-sales service? How long is the machine warranty? A1: We guarantee 1 year after-sale service once you received our machine, you can call us or send us any questions about the machine.
Q2: How long is your delivery time? A2: Normally our film blowing machine will be delivered within 30 days after 100% testing .
Q3: How long can your machine work continuously? A3: We advice the machine working 24 hours a day without stopping, which not only increases production but also saves energy.
Q4: Does your factory need agents? What are the thresholds? A4: We need agents, welcome to inquire for more details.
Q5: Where is your factory? How can I visit there? A5: We are located in Wuhan City, Hubei Province.We have convenient transportation and we are willing to show u around our factory.

---
