Product Details
Product Description
Product Description

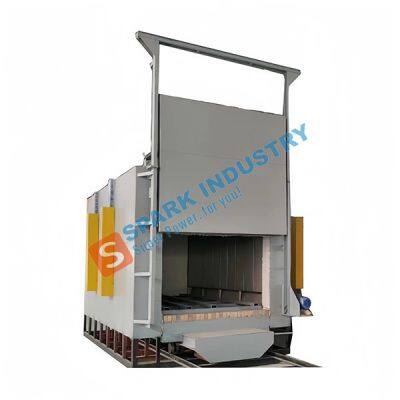

First, the use of trolley resistance furnace
All-fiber trolley resistance furnace is a cycle furnace, a large industrial furnace, mainly for the general large, medium-sized castings or alloy parts at rated temperature for heat treatment purposes.
Second, trolley resistance furnace structure
The car furnace by the furnace (including furnace lining), door, furnace car, door lifting mechanism, carriage traveling agencies, heating elements, temperature control system, temperature records and other components.
Technical parameters
Model
| Rated power
(kw)
| Rated temperature
(℃)
| Chamber size
(L/W/H mm)
| Furnace hearth size
(L/W/H mm)
| Weight(kg)
|
SPK-125
| 125
| 900/1200
| 1800*900*650
| 2700*1750*2100
| 3000
|
SPK-150
| 150
| 900/1200
| 2000*1000*700
| 2900*1850*2150
| 4500
|
SPK-220
| 220
| 900/1200
| 2400*1200*800
| 3300*2050*2250
| 7000
|
SPK-280
| 280
| 900/1200
| 3000*1200*1000
| 3900*2050*2450
| 10000
|
SPK-360
| 360
| 900/1200
| 3600*1500*1000
| 4500*2350*2450
| 12000
|
>>
