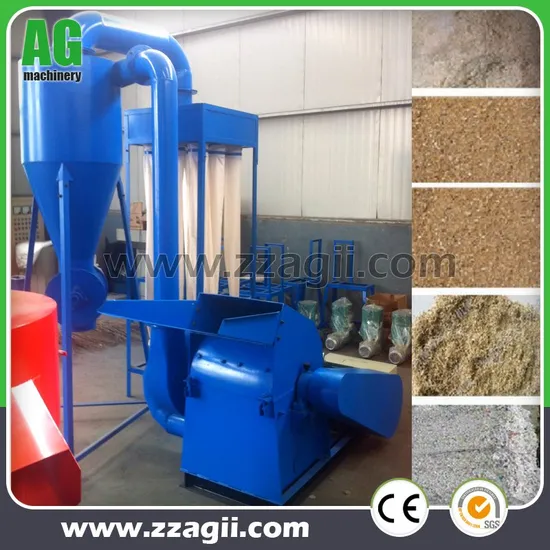

Farming Equipment Straw Shredder Feed Grinder Hammer Mill for Cow Pig Sheep Feed

Product Description

Multifunctional feed hammer mill grinder, hammer crushing machine for sale
Features:
1. Compact structure, small size, light weight; with steel structure,
3. Easy to operate
4. Safety and reliable: special device to stop the feeding knife accidents,
5. Support various power devices: electric motor, diesel engine, and tractor
6. High quality steel Blades, super wear resistant
7. Adjustable output sizes: accordingly by manual method
8. Better feeding device: new design feeding roller added before pressing roller
Parameters:

Model	Power (kw)	Capacity (straw grinding)	Weight (kg)	Dimension (mm)
320	5.5 kw	300 -350	260	900 x 500 x 800
420	7.5 kw	400 -500	350	1100 x 550 x 850
500-28	15 kw	600 -800	450	1250 x 650 x 1000
500-40	22 kw	900 -1000	750	1400 x 780 x 1250
500-50	30 kw	1000- 1500	900	1600 x 850 x 1350
500-60	37 kw	1500- 2000	1300	1750 x 900 x 1550

Introduction:
The 9FQ series hammer mills are able to crush both forestry and agricultural material, brittle and fibrous material, such as bamboo, stalk, grass and shrub. A screen with cutting edges is used to control the particle size. If the size is larger than screen, the bigger particles will be sent back to be grinded again until they can get though the screen.

Our hammer mill is the special milling equipment for materials of < 50 mm (diameter),< 300 mm (length), such as tree trimmings, wood pieces, crop stalks, rice husk, cotton stalk, cottonseed skins and so on. This hammer mill contains some rotors which are mounted by many hammers.
The hammers swing following with the rotor at a high speed. And then the materials fed into a feed hopper are shred by the hammers. At last the materials are expelled out and sieved by the exhaust fan and screen. The size of the grinded material depends on the size of screen and the rotation speed.

Raw materials Ranges of Feed hammer mill:
Grain, straw, corn, rice husk, wheat, corn straw, corn stalk, corncob, beans, maize, spice, herb, wood chips, tree branch and various biomass etc

Applied field:
1) Ideal helper of the family farmed cattle, sheep, poultry, horse, rabbit and etc
2) This series of feed hammer grinder have advantage of compact structure, strong and durable, safe and reliable, easy operation.
3) Low noise & vibration, high Efficiency and low energy consumption, etc.
With double discharge to connect material and more convenient to use
4) The spare part of hamm mill machine completely adopt high quality material, outsourcing parts adopt domestic optimal products, the whole machine quality is reliable, long-lived.

---
