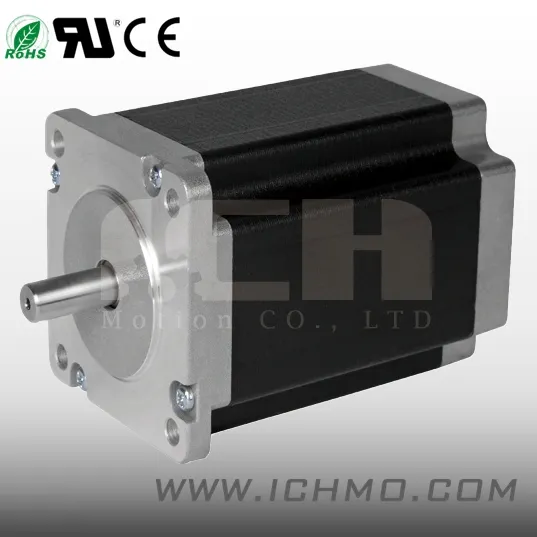

NEMA 24 60mm 3 Phase Hybrid Stepper Stepping Motor with Encoder

Product Description

I. CH MOTOR - Hybrid Stepper Motor H601(60MM)
Specifications:
-Step Angle: 1.8°
-Length: 41-90mm
-Rated Current: 2.0-4.2A
-Phase Resistance: 0.4-1.8ohm
-Phase Inductance: 1.2-6.5mH
-Holding Torque: 75-260N. Cm
-Detent Torque: 3.0-12N. Cm
-Lead Wire No.: 4
-Weight: 500-1400g
Drawing:
Electrical Specification:

Series Model	Step Angle ( o )	L (mm)	Rated Current (A)	Phase Resistance ( Ω )	Phase Inductance (mH)	Holding Torque (N.cm)	Detent Torque (N.cm)	Lead Wire (NO.)	Motor Weight ( g)
H601-07520	1.8	41	2.0	1.2	2.5	75	3.0	4	500
H601-08525	1.8	45	2.5	1.0	2.2	85	3.5	4	550
H601-14025	1.8	51	2.5	1.2	3.2	140	4.0	4	580
H601-16025	1.8	56	2.5	1.3	4.2	160	4.0	4	580
H601-16030	1.8	56	3.0	0.8	2.4	160	4.0	4	580
H601-16042	1.8	56	4.2	0.4	1.2	160	4.0	4	580
H601-18025	1.8	64	2.5	1.5	4.5	180	5.0	4	850
H601-18030	1.8	64	3.0	0.8	2.3	180	5.0	4	850
H601-18042	1.8	64	4.2	0.55	1.2	180	5.0	4	850
H601-22025	1.8	76	2.5	1.8	6.5	220	7.0	4	1150
H601-22030	1.8	76	3.0	1.0	3.5	220	7.0	4	1150
H601-22042	1.8	76	4.2	0.6	1.8	220	7.2	4	1150
H601-26030	1.8	90	3.0	1.4	5.5	260	12	4	1400
H601-26042	1.8	90	4.2	0.8	3.0	260	12	4	1400

Work Flow:
About Us:
I.CH Motion Co., Ltd., established in 2006, and our main products are hybrid stepper motor, stepping motor driver, step engine, stepping engine, integrated step servo motors. 2 phase stepper motor, stepping motor, step motor.
Professional manufacturer for stepper motor, have NEMA8, NEMA11, NEMA14, NEMA17, NEMA23, NEMA34, NEMA42.1.8 degree, 0.9 degrees. Single shaft and double shaft.
I.CH owns a test center, equipped with a variety of detection equipment and measuring instruments. The test center equipped Torque-frequency characteristic test equipment and Encoder Precision test instrument also.
Applications:
Our products are widely used and applied in the following industries: lighting system, projector, CNC, semiconductor, textile, laser, woodworking, printing, advertising, clothing, marble and ceramic, robotics and military.
