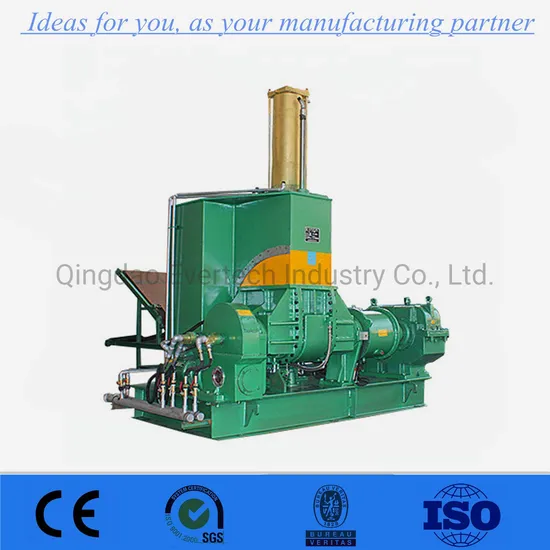

Rubber Screw Mixer Rubber Compounding Intermesh Mixer

Product Description

rubber screw mixer rubber compounding intermesh mixer
rubber screw mixer Product Description
rubber screw mixer Chamber It consists of a "w" shape body and two side boards made of high quality steel plates by means of extrusion forming and welding, which are jacked to take the flow of cooling water or steam. It is plated with hard chrome on its internal walls
rubber screw mixer Regular Note Pump Timing injection pump to the sealing system on a regular injection of hydraulic oil, lubrication sealing effect.
rubber screw mixer Thermal Resistance (or thermal couple) There is a plug-in thermal resistance or thermal couple in middle section of the bottom of the chamber to be connected to electrical system to inspect and control the mixing temperature.
rubber screw mixer Rotor It is designed to the hollow blades of banbury type. The hollows are connected with axial hole of rotor shaft used as cooling or heating passage. The top edges and the side faces of blades are surface welded with hard alloy and ground, then plated with hard chrome and polished.

rubber screw mixer Cooling/heating System A common piping system is adopted for either cooling or heating material in mixing operation. Through the system cooling water or steam is fed in three ways to the cavities of the rotors blades, - the jackets of the mixing chamber and the top ram.
rubber screw mixer Tilting Mechanism It consists of a rotor with brake, cycloidal gear reducer, TP type worm and worm gear, etc. It is able to actuate the mixing chamber tilting by 140° Around the front rotors.
rubber screw mixer Electrical Control System Imported PLC device and electric control components which are all imported products or imported technology products are adopted in the electric control system as to raise control reliability.

rubber screw mixer Dust Sealing Device Mixing chamber catchy interface rack cantilever the oil dust seals and timing effect oiling dust, unique structure, the use of copper materials, good sealing performance, no leakage of the glue, powder leakage, do not pollute the environment, but also has easy maintenance and long service life.
rubber screw mixer Specification

Item

Unit

X(S)N-3x32

X(S)N-5x32

X(S)N-10x32

X(S)N-20x32

X(S)N-25x32

X(S)N-35x30

X(S)N-55x30

X(S)N-75x30

X(S)N-110x30

X(S)N-150x30

X(S)N-200x30

Total Volume of Mixing Chamber

(L)

8

15

25

45

55

75

125

170

250

325

440

Working Volume of Mixing Chamber

(L)

3

5

20

25

35

55

75

110

150

200

Driving Motor Power

(KW)

5.5

11

22

37

37

55

75

110

185

220

280

Titling Motor Power

(KW)

0.55

1.1

1.1

1.5

1.5

2.2

2.2

4

5.5

11

11

Rotational Speed of The Rotor (front/rear)

(r/min)

30/24.5

32/23.5

32/25

32/27

32/27

30/24.5

30/24.5

30/24.5

30/24.5

30/24.5

30/24.5

Pressure of Compressed Air

(m³/min)

≥0.3

≥0.5

≥0.5

≥0.7

≥0.7

≥0.9

≥1.0

≥1.0

≥1.5

≥2.0

≥4.0

Pressure of Cooling Water (mixing rubber)

(MPa)

0.2~0.4

0.2~0.4

0.2~0.4

0.2~0.4

0.2~0.4

0.3~0.4

0.3~0.4

0.3~0.4

0.3~0.4

0.3~0.4

0.3~0.4

Pressure of Heating Steam (plastic mixing)

(MPa)

0.5~0.8

0.5~0.8

0.5~0.8

0.5~0.8

0.5~0.8

0.5~0.8

0.5~0.8

0.5~0.8

0.5~0.8

0.5~0.8

0.5~0.8

Dimensions (LxWxH)

(mm)

2000 x1000 x2220

1850 x1200 x2580

2640 x1650 x2350

2675 x1650 x2560

2675 x1650 x2560

3200 x1900 x2950

3230 x1927 x2958

3325 x2615 x3150

4075 x2712 x3580

4250 x2750 x4106

4250 x3400 x4215

Gross Weight

(t)

~2

~2.1

~3.3

~4

~4.5

~6.3

~7.1

~9.5

~14.9

~19.5

~22.5

Visiting customers
If you want to know more about our products, welcome to our company for detailed information. Here we have professional engineers and technicians to instruct you.
Delivery
We will deliver your goods by LCL/20'FCL/40'FCL depending on your order.
Before delivery, our professional technician will do trial run for each product to check until everything is functional, you also can come to our factory and test our machine together with us.
When loading, our workers will fix the machine tightly with wire rope so that the machine can't move in the container.
Company Introduction Qingdao Evertech Industry Co., Ltd. is a professional pressure vessel designer, manufacturer and exporter. We have manufacturing licenses for ASME U, ASME U2,NB,PED, D1, D2 and A2 pressure vessels. Composed of more than 20 senior experts and professional engineers, the research and development team, with more than 20 years of professional experience, is committed to product design, development and program optimization, and can provide high-quality solutions according to users' requirements in different operating conditions. Company has cover an area of 70000 manufacturing base and 15000 modern manufacturing plants, can provide customers both at home and abroad with composite autoclave, high pressure autoclave, high pressure reactor, AAC autoclave, deaerator, pouring tank pressure vessel products such as more than 800 sets, pressure vessel head more than 20000 sets high quality products and services, won widespread praise.
FAQ
1.What are the payment terms?
TT,L/C and trade assurance are acceptable,TT will be more appreciated,30% deposit before production,70% balance before shipment.
2.What is the delivery time?
At least 1 month after the deposit recipit,depend on how many machines included in the line.
3.How to pack the machine?
Standard packaging
4.How to install after the machines arriving destination?
Our engineer will go to customers site if you need,but need to pay installation fee accord with the contract.
5.What's the capacity you can do?
We always produce depend on customers' requirement. Welcome to send me email any time.

---
