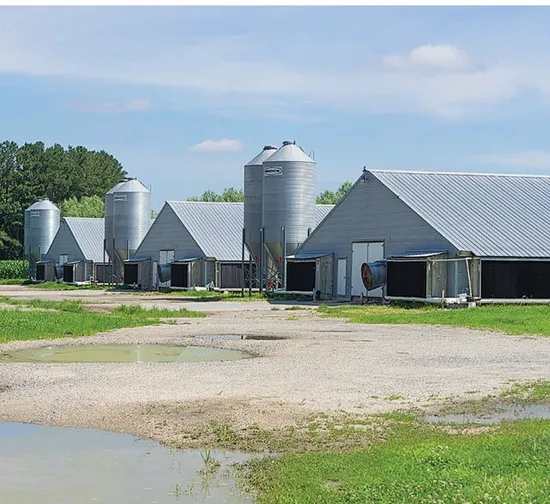

Good Quality Chicken Steel Sructure Layer House (BYPH-220611005)

Product Description

Product Description
Good Quality Chicken Steel Sructure Layer House(BYPH-220611005)
A.Steel structure house

Material	Specification
Length	Single slope,double slope,multi slope
Width	Single span,double span,multi span
Heigth	Single floor,double floors
Column	Q235,Q345 welded H section steel
Beam	Q235,Q345 welded H section steel
Purlin	Q235 C channel or Z channel
Knee brace	Q235 angle steel
Vertical and transversal supporting	Q235 angle steel,round bar or steel pipe
Tie bar	Q235 steel pipe
Brace	Q235 round bar
Cladding system	EPS,PU,Fiber glass wool sandwich panels or corrugated steel sheet with fiber glass
Partition wall	Sandwich panels(EPS,PU,Fiber glass wool etc.)available in different color
Door	Sandwich panel sliding door or roller door
Gutter	Stainless steel or color steel sheet
Rainspout	PVC
Live load on roof	In 120kg/Sqm(Color steel panel surrounded)
Wind resistance grade	12 grade
Earthquake-resistance	8 grade
Struture life span	Up to 50 years
Finishing options	Vast array of colors and textures available
Paint options	Gray/red/white painted,epoxy zinc etc or galvanized

B.Layer feeding system
C.Equipments details
D.Packaging and loading
E.Certificates
F.Our company

Qingdao Xinguangzheng Husbandry Co., Ltd. is a subsidiary of Qingdao Xinguangzheng Group.It has independent professional product development and design,manufacturing,engineering and installation capabilities,and providing intelligent integrated husbandary services to customers around the world.The company has always been committed to the use of state-of-the-art science and technology and develop product solutions for the global livestock industry,providig complete technical support,from home-based farms to complete solutions for complex commercial farms,and is always closed to national markets through communication and cooperation.
The company has formed a research and development team for the chicken house project with elite technicians,Through the project research and study,the decomposition of the house building,the internal and external training of the science profession,the company has formed a unique series of standardized chicken houses.
The perfect engineering installation team and after-sales service team always adhere to the principle of customer satisfaction and are highly recognized and appreciated by domestic and foreign customers.
G.FAQ
1. Why choose us?
We are a steel structural building Manufacturer located in Qingdao, China, We have gained a good reputation among our customers for our professional, warm and thoughtful service. Because we know that a long terms business is based on the quality control, price, packing, delivery time etc.
2. Does your company is a factory or trade company?
We are a factory, so you will get the best and competitive price. Our factory covers an area of 150, 000 square meters. If it is available, you might as well visit us.
3. What's the quality assurance you provided and how do you control quality?
Established a procedure to check products at all stages of the manufacturing process - from raw materials, processing, testing or inspection, to finished goods, etc.
4. What's the delivery time?
After we got you deposit, we can deliver goods within 30 days.
5. Can you offer designing service?
Yes, we have more than 100 design engineers. We could design full solution drawings as per your requirements. The software we used here are Auto CAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures(Xsteel)V12.0. etc.
6. Do you offer guiding installation on site overseas?
Yes, we can provide the service of installation, supervision and training by extra. We can send our professional technical engineers to supervise installation on site overseas. Besides, we also have our own abroad guiding installation team consisting of more than 30 people.
They have finished many cases successfully in many countries, such as Iraq, Dubai, South Africa, Algeria, Ghana, Gabon, Tajikistan, Burkina Faso, Panama, Australia and so on.

---
